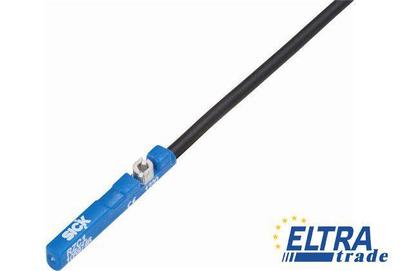

Sick RZC1-04ZUS-KU0 Magnetic Cylinder Sensors

Sick RZC1-04ZUS-KU0
Item Number: RZC1-04ZUS-KU0
  • Fits into all commonly used cylinders, linear slides and grippers with C-slots, such as, Festo or SMC
  • Complete range with Reed 3-wire, Reed 2-wire, and Reed 120V version
  • Combined Allen and flathead installation screw
Total price: 19.44
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1059750
Supply voltage:5 V AC/DC ... 120 V AC/DC
Housing cap material:PA, strengthened
Electrical wiring:AC/DC 2-wire
Repeatability:≤ 0.1 mT
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Cylinder type:C-slot
Switching frequency typ.:± 500 Hz
Switching output:Reed
Output function:NO
Conductor cross-section:0.09 mm²
Housing material:Plastic
Power consumption:5 mA
Housing length:26.3 mm
Voltage drop:< 3.2 V
Protection class:II
Switching power:1.5 W
Output current Ia:≤ 50 mA
Connection type:Cable, 2-wire, 2 m
Cylinder types with adapter:SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Enclosure rating:IP 67

Cable material:PUR
Overrun distance typ.:7 mm
Ambient operating temperature:-30 °C ... +80 °C
EMC:According to EN 60947-5-2
