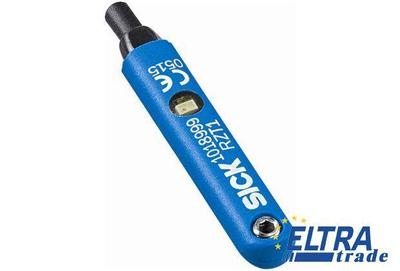

Sick RZT1-03ZRS-KWB Magnetic Cylinder Sensors

Item Number: RZT1-03ZRS-KWB
  • Compact housing design
  • Complete range with Reed 3-wire, Reed 2-wire, and Reed 230 V version
  • LED function indicator
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick RZT1-03ZRS-KWB is outdated.


Part Number1018579
Output current Ia:≤ 500 mA
Cable material:PVC
Repeatability:≤ 0.2 mm
Conductor cross-section:0.14 mm²
Magnetic field sensitivity, typ.:3 mT
Protection class:III
Cylinder type:T-slot
Voltage drop:≤ 0.1 V
Hysteresis typ.:≤ 1.5 mm
Supply voltage:10 V AC/DC ... 30 V AC/DC
Switching power:6 W
Overrun distance typ.:9 mm
Short-circuit protection:-
Switching frequency typ.:400 Hz
Output function:NO
Switching output:Reed
Housing length:30.5 mm
Enclosure rating:IP 67
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Cylinder types with adapter:Profile cylinder
Roundbody cylinder
SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Tie rod cylinder
Cylinders with dovetail slots
Output indicator:+
Housing material:Plastic
Connection type:Cable, 3-wire, 5 m
EMC:According to EN 60947-5-2
Ambient operating temperature:-25 °C ... +75 °C
Electrical wiring:AC/DC 3-wire
