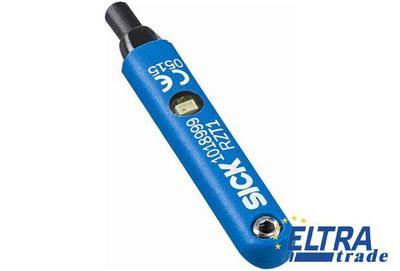

Sick RZT1-03ZUO-KW0 Magnetic Cylinder Sensors

Sick RZT1-03ZUO-KW0
Item Number: RZT1-03ZUO-KW0
  • Compact housing design
  • Complete range with Reed 3-wire, Reed 2-wire, and Reed 230 V version
  • LED function indicator
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick RZT1-03ZUO-KW0 is outdated.


Part Number1026469
Ambient operating temperature:-25 °C ... +75 °C
Protection class:II
Hysteresis typ.:≤ 1.5 mm
Enclosure rating:IP 67
Switching frequency typ.:400 Hz
Voltage drop:≤ 3.5 V
Cylinder type:T-slot
Connection type:Cable, 2-wire, 2 m
Output indicator:-
EMC:According to EN 60947-5-2
Output function:NC
Overrun distance typ.:9 mm
Magnetic field sensitivity, typ.:3 mT
Cable material:PVC
Output current Ia:≤ 100 mA
Switching output:Reed
Electrical wiring:AC/DC 2-wire
Switching power:6 W
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Short-circuit protection:-
Housing material:Plastic
Supply voltage:10 V AC/DC ... 120 V AC/DC
Conductor cross-section:0.12 mm²
Repeatability:≤ 0.1 mm
Housing length:30.5 mm
Cylinder types with adapter:Profile cylinder
Roundbody cylinder
SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Tie rod cylinder
Cylinders with dovetail slots
