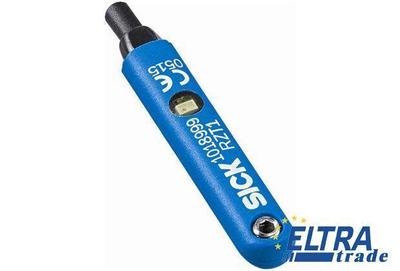

Sick RZT1-03ZUS-KU0 Magnetic Cylinder Sensors

Sick RZT1-03ZUS-KU0
Item Number: RZT1-03ZUS-KU0
  • Compact housing design
  • Complete range with Reed 3-wire, Reed 2-wire, and Reed 230 V version
  • LED function indicator
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick RZT1-03ZUS-KU0 is outdated.

Specification:

Part Number1043567
Output indicator:+
Cylinder types with adapter:Profile cylinder
Roundbody cylinder
SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Tie rod cylinder
Cylinders with dovetail slots
Voltage drop:≤ 3.5 V
Cable material:PUR
Enclosure rating:IP 67
Conductor cross-section:0.12 mm²
Protection class:II
Switching frequency typ.:400 Hz
Output function:NO
EMC:According to EN 60947-5-2
Hysteresis typ.:≤ 1.5 mm
Supply voltage:10 V AC/DC ... 120 V AC/DC
Connection type:Cable, 2-wire, 2 m
Ambient operating temperature:-25 °C ... +75 °C
Housing length:30.5 mm
Magnetic field sensitivity, typ.:3 mT
Electrical wiring:AC/DC 2-wire
Overrun distance typ.:9 mm
Switching output:Reed
Repeatability:≤ 0.1 mm
Switching power:6 W
Short-circuit protection:-
Output current Ia:≤ 100 mA
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Housing material:Plastic
Cylinder type:T-slot
