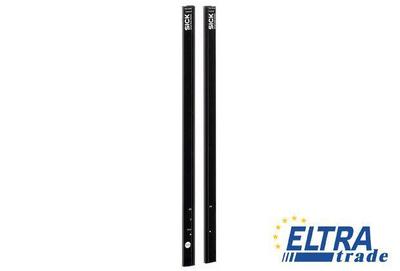

Sick SAS4-F028N3PS1T00 Switching automation light grids

Sick SAS4-F028N3PS1T00
Item Number: SAS4-F028N3PS1T00
  • Variable monitoring lengths from 120 mm up to 1,400 mm (in 160 mm increments)
  • Maximum range 10 m
  • Response time 18 ms
Total price: 359.19
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1208786
Cross beam/parallel beam:Parallel beam active
Optical light exit:Flat
Enclosure rating:IP 65
Housing material:PMMA
Weight:40 g
Power consumption sender :88 mA
Power consumption receiver :70 mA
Output load capacitive:100 nF
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Output current Imax.:100 mA
Output 1:Output 1 active, if light beam interrupted
Switching output:1 x NPN
Ambient light safety:Direct: ≥100,000 lx, Indirect: ≥150,000 lx
Configuration:Teach button with configuration software
Muting function:Muting function inactive
Working range:3 m
Output load inductive:1 H
Minimum detectable object (MDO):Parallel beam, 45 mm
Ambient temperature:Operation: -25 ... +55 °C
Storage: -25 ... +70 °C
Ripple:< 5 Vpp
Response time:Parallel beam 19 ms
Beam separation:40 mm
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Aluminum stabilizer:Without stabilizer
Supply voltage Vs :DC 24 V, ± 20 %
Number of beams:8
Connection type:Short cable with connector M8, 4-pin
Dimensions (W x H x D):25 mm x 352.4 mm x 8 mm
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Switching frequency:500 kHz
Task:Switching light grid
Wave length:IR 950 nm
Initialization time:1 s
Maximum range:4 m
Protection class:III
Minimum range:Parallel beam: ≥0 mm
Automatic teach:Automatic teach inactive
Alignment aid:Without alignment aid
Inputs:Teach input
EMC:EN 60947-5-2
Detection height:280 mm
