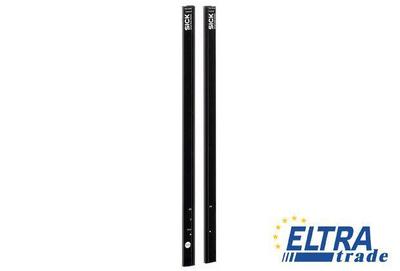

Sick SAS4-F028P3PS2T00 Switching automation light grids

Sick SAS4-F028P3PS2T00
Item Number: SAS4-F028P3PS2T00
  • Variable monitoring lengths from 120 mm up to 1,400 mm (in 160 mm increments)
  • Maximum range 10 m
  • Response time 18 ms
372.06
Quantity
-
+
Total price: 372.06
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1207711
Number of beams:8
Technology:Sender/receiver
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Muting function:Muting function inactive
EMC:EN 60947-5-2
Weight:40 g
Wave length:IR 950 nm
Automatic teach:Automatic teach inactive
Initialization time:1 s
Minimum range:Parallel beam: ≥0 mm
Supply voltage Vs :DC 24 V, ± 20 %
Protection class:III
Maximum range:4 m
Task:Switching light grid
Beam separation:40 mm
Power consumption receiver :70 mA
Alignment aid:Without alignment aid
Cross beam/parallel beam:Parallel beam active
Indication:LED
Ripple:< 5 Vpp
Output current Imax.:100 mA
Configuration:Teach button with configuration software
Dimensions (W x H x D):25 mm x 352.4 mm x 8 mm
Ambient light safety:Direct: ≥100,000 lx, Indirect: ≥150,000 lx
Optical light exit:Flat
Switching frequency:500 kHz
Output load capacitive:100 nF
Connection type:Short cable with connector M8, 4-pin
Power consumption sender :88 mA
Aluminum stabilizer:With stabilizer
Inputs:Teach input
Synchronization:Optical
Housing material:PMMA
Working range:3 m
Ambient temperature:Operation: -25 ... +55 °C
Storage: -25 ... +70 °C
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Switching output:1 x PNP
Output 1:Output 1 active, if light beam interrupted
Output load inductive:1 H
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Minimum detectable object (MDO):Parallel beam, 45 mm
Detection height:280 mm
Response time:Parallel beam 19 ms
Enclosure rating:IP 65
