Sick SGS4-F108P3PS1W00 Switching automation light grids

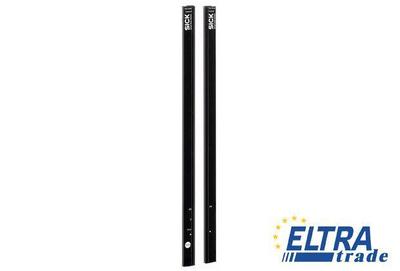

Sick SGS4-F108P3PS1W00
Item Number: SGS4-F108P3PS1W00
  • Variable monitoring lengths from 120 mm up to 1,400 mm (in 160 mm increments)
  • Maximum range 10 m
  • Response time 18 ms
616.59
Quantity
-
+
Total price: 616.59
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1045008
Alignment aid:Without alignment aid
Cross beam/parallel beam:Parallel beam active
Technology:Sender/receiver
Minimum range:Parallel beam: ≥0 mm
Output load inductive:1 H
Weight:140 g
Protection class:III
Power consumption receiver :70 mA
Aluminum stabilizer:Without stabilizer
Output current Imax.:100 mA
Connection type:Short cable with connector M8, 4-pin
Inputs:Teach input
EMC:EN 60947-5-2
Beam separation:40 mm
Task:Switching light grid
Configuration:Without teach button with configuration software
Supply voltage Vs :DC 24 V, ± 20 %
Enclosure rating:IP 65
Ripple:< 5 Vpp
Optical light exit:Flat
Response time:Parallel beam 19 ms
Initialization time:1 s
Output load capacitive:100 nF
Output 1:Output 1 active, if light beam interrupted
Switching output:1 x PNP
Housing material:PMMA
Detection height:1,080 mm
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Minimum detectable object (MDO):Parallel beam, 45 mm
Indication:LED
Ambient temperature:Operation: -25 ... +55 °C
Storage: -25 ... +70 °C
Switching frequency:500 kHz
Muting function:Muting function inactive
Working range:3 m
Power consumption sender :208 mA
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Synchronization:Optical
Wave length:IR 950 nm
Number of beams:28
Maximum range:4 m
Ambient light safety:Direct: ≥100,000 lx, Indirect: ≥150,000 lx
Dimensions (W x H x D):25 mm x 1,152.4 mm x 8 mm
Automatic teach:Automatic teach inactive
