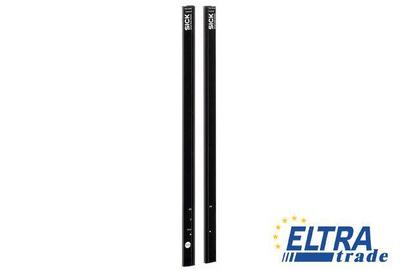

Sick SGS4-S108P3PS1T00 Switching automation light grids

Sick SGS4-S108P3PS1T00
Item Number: SGS4-S108P3PS1T00
  • Variable monitoring lengths from 120 mm up to 1,400 mm (in 160 mm increments)
  • Maximum range 10 m
  • Response time 18 ms
655.20
Quantity
-
+
Total price: 655.20
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1209472
Task:Switching light grid
Initialization time:1 s
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
EMC:EN 60947-5-2
Housing material:PMMA
Output load capacitive:100 nF
Power consumption sender :208 mA
Working range:3 m
Cross beam/parallel beam:Parallel beam active
Aluminum stabilizer:Without stabilizer
Synchronization:Optical
Ambient light safety:Direct: ≥100,000 lx, Indirect: ≥150,000 lx
Optical light exit:Slim
Ambient temperature:Operation: -25 ... +55 °C
Storage: -25 ... +70 °C
Protection class:III
Indication:LED
Configuration:Teach button with configuration software
Number of beams:28
Output 1:Output 1 active, if light beam interrupted
Switching output:1 x PNP
Technology:Sender/receiver
Ripple:< 5 Vpp
Response time:Parallel beam 19 ms
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Detection height:1,080 mm
Minimum detectable object (MDO):Parallel beam, 45 mm
Maximum range:4 m
Inputs:Teach input
Wave length:IR 950 nm
Enclosure rating:IP 65
Supply voltage Vs :DC 24 V, ± 20 %
Power consumption receiver :70 mA
Dimensions (W x H x D):25 mm x 1,152.4 mm x 8 mm
Alignment aid:Without alignment aid
Output current Imax.:100 mA
Automatic teach:Automatic teach inactive
Beam separation:40 mm
Weight:140 g
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Switching frequency:500 kHz
Muting function:Muting function inactive
Minimum range:Parallel beam: ≥0 mm
Output load inductive:1 H
Connection type:Short cable with connector M8, 4-pin
