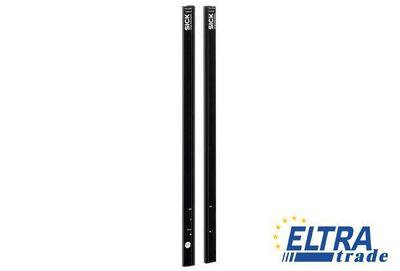

Sick SGS4-S108P7PS1W00 Switching automation light grids

Sick SGS4-S108P7PS1W00
Item Number: SGS4-S108P7PS1W00
  • Variable monitoring lengths from 120 mm up to 1,400 mm (in 160 mm increments)
  • Maximum range 10 m
  • Response time 18 ms
Total price: 633.07
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1045009
Response time:Parallel beam 19 ms
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Initialization time:1 s
Optical light exit:Slim
Task:Switching light grid
Minimum detectable object (MDO):Parallel beam, 45 mm
Ambient light safety:Direct: ≥100,000 lx, Indirect: ≥150,000 lx
Ripple:< 5 Vpp
Beam separation:40 mm
Power consumption receiver :70 mA
Minimum range:Parallel beam: ≥0 mm
Working range:7 m
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Switching frequency:500 kHz
Alignment aid:Without alignment aid
Supply voltage Vs :DC 24 V, ± 20 %
Number of beams:28
Dimensions (W x H x D):25 mm x 1,152.4 mm x 8 mm
Output load capacitive:100 nF
Switching output:1 x PNP
Aluminum stabilizer:Without stabilizer
Protection class:III
Automatic teach:Automatic teach inactive
Cross beam/parallel beam:Parallel beam active
Enclosure rating:IP 65
Ambient temperature:Operation: -25 ... +55 °C
Storage: -25 ... +70 °C
Weight:140 g
Output 1:Output 1 active, if light beam interrupted
EMC:EN 60947-5-2
Muting function:Muting function inactive
Power consumption sender :208 mA
Connection type:Short cable with connector M8, 4-pin
Inputs:Teach input
Configuration:Without teach button with configuration software
Maximum range:10 m
Housing material:PMMA
Detection height:1,080 mm
Output current Imax.:100 mA
Wave length:IR 950 nm
Output load inductive:1 H
