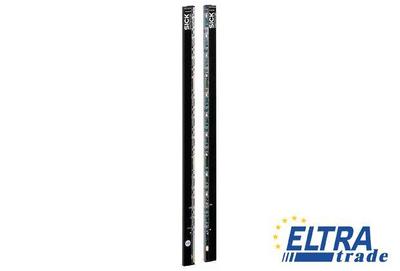

Sick SPL-F120PPC1W04 Switching automation light grids
Item Number: SPL-F120PPC1W04
- Variable monitoring lengths from 120 mm up to 1,400 mm (in 160 mm increments)
- Maximum range 10 m
- Response time 18 ms
- Overview
- Datasheet
- Alternative numbers
- Comments
Specification:
| Part Number | 1208391 |
| Vibration resistance: | 5 g, 10 Hz ... 55 Hz (IEC 68-2-6) |
| Output current Imax.: | 100 mA |
| Power consumption receiver : | 50 mA |
| Task: | Switching light grid |
| Technology: | Sender/receiver |
| Initialization time: | 1 s |
| Minimum range: | Parallel beam: ≥0 mm |
| Switching frequency: | 250 kHz |
| Dimensions (W x H x D): | 25 mm x 192.4 mm x 8 mm |
| Ambient light safety: | Direct: ≥100,000 lx, Indirect: ≥150,000 lx |
| Working range: | 1.5 m |
| Aluminum stabilizer: | Without stabilizer |
| Ambient temperature: | Operation: -25 ... +55 °C Storage: -25 ... +70 °C |
| Power consumption sender : | 50 mA |
| Synchronization: | Optical |
| Number of beams: | 4 |
| Inputs: | Job LED |
| Shock load: | 10 g / DIN EN 60068-2-29 / 16 ms |
| Maximum range: | 3 m |
| Minimum detectable object (MDO): | Parallel beam, 45 mm |
| Beam separation: | 40 mm |
| Ripple: | < 5 Vpp |
| Switching output: | 1 x PNP |
| Optical light exit: | Flat |
| Supply voltage Vs : | DC 24 V, ± 20 % |
| EMC: | EN 60947-5-2 |
| Automatic teach: | Automatic teach active |
| Detection height: | 120 mm |
| Output load inductive: | 1 H |
| Configuration: | Without teach button with configuration software |
| Enclosure rating: | IP 65 |
| Circuit protection: | Output Q short-circuit protected Interference suppression VS connections reverse-polarity protected |
| Protection class: | III |
| Indication: | LED |
| Output load capacitive: | 100 nF |
| Output 1: | Output 1 active, if light beam interrupted |
| Alignment aid: | Without alignment aid |
| Connection type: | Short cable with connector M8, 4-pin |
| Wave length: | IR 950 nm |
| Housing material: | PMMA |
| Response time : | Parallel beam coded version 38 ms |
| Cross beam/parallel beam: | Parallel beam active |
| Weight: | 20 g |
| Muting function: | Muting function inactive |
