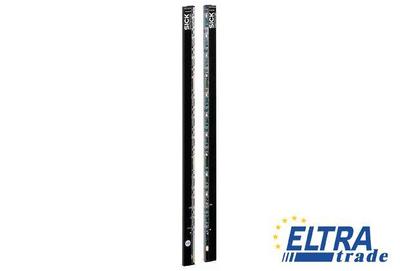

Sick SPL-F440PPS1W04 Switching automation light grids

Sick SPL-F440PPS1W04
Item Number: SPL-F440PPS1W04
  • Variable monitoring lengths from 120 mm up to 1,400 mm (in 160 mm increments)
  • Maximum range 10 m
  • Response time 18 ms
Total price: 410.43
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1046314
Ambient temperature:Operation: -25 ... +55 °C
Storage: -25 ... +70 °C
Connection type:Short cable with connector M8, 4-pin
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Configuration:Without teach button with configuration software
Output current Imax.:100 mA
Initialization time:1 s
Automatic teach:Automatic teach active
Muting function:Muting function inactive
Dimensions (W x H x D):25 mm x 512.4 mm x 8 mm
Minimum detectable object (MDO):Parallel beam, 45 mm
Cross beam/parallel beam:Parallel beam active
Output 1:Output 1 active, if light beam interrupted
Protection class:III
Ambient light safety:Direct: ≥100,000 lx, Indirect: ≥150,000 lx
Housing material:PMMA
Switching output:1 x PNP
Optical light exit:Flat
Number of beams:12
Weight:60 g
Maximum range:3 m
Aluminum stabilizer:Without stabilizer
Output load capacitive:100 nF
EMC:EN 60947-5-2
Inputs:Job LED
Ripple:< 5 Vpp
Switching frequency:500 kHz
Minimum range:Parallel beam: ≥0 mm
Response time:Parallel beam 19 ms
Power consumption receiver :50 mA
Enclosure rating:IP 65
Task:Switching light grid
Detection height:440 mm
Supply voltage Vs :DC 24 V, ± 20 %
Beam separation:40 mm
Alignment aid:Without alignment aid
Wave length:IR 950 nm
Output load inductive:1 H
Working range:1.5 m
Power consumption sender :50 mA
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
