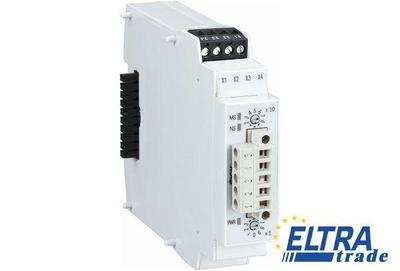

Sick UE410-DEV3 Safety controller

Sick UE410-DEV3
Item Number: UE410-DEV3
  • Gateway collects all information of the system
  • The supervisor PLC can read out of the gateway and/or the gateway can write into a PLC by itself
  • Addition of 1 gateway to the Flexi Classic system
392.89
Quantity
-
+
Total price: 392.89
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6032469
Power consumption:1.6 W (DC)
Enclosure rating terminals:IP 20 (EN 60529)
Voltage supply:Via FLEXBUS
Climate conditions according to:EN 61131-2 (55 °C ambient operating temperature, 95% rel. humidity)
Protection class:III (EN 61140)
Dimensions (W x H x D):22.5 mm x 96.5 mm x 120.8 mm
Weight:160 g
Finely stranded with ferrules (2x):0.25 mm² ... 0.5 mm²
Storage temperature:-25 °C ... +70 °C
Air humidity:15 % ... 95 %, non-condensing
Vibration resistance:5 g RMS, 5 Hz ... 500 Hz (EN 60068-2-64)
Connection type:Plug-in screw-type terminals
Finely stranded with ferrules (1x):0.25 mm² ... 2.5 mm²
Ambient operating temperature:-25 °C ... +55 °C
Eindrahtig oder feindrahtig (2x):0.14 mm² ... 0.75 mm²
Electromagnetic compatibility (EMC):Class A (EN 61000-6-2, EN 55011)
Eindrahtig oder feindrahtig (1x):0.14 mm² ... 2.5 mm²
Protection class housing:IP 40 (EN 60529)
