Sick UP56-212128 Level sensors

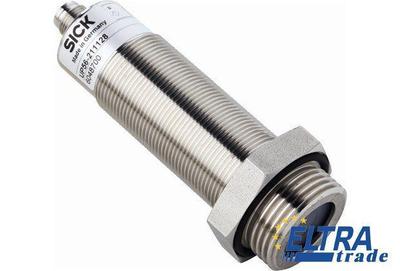

Sick UP56-212128
Item Number: UP56-212128
  • Non-contact level measurement up to 3.4 m operating distance / 8.0 m limit scanning distance
  • Pressure resistant up to 6 bar (87 psi)
  • Transducer protected by PVDF cover for increased resistance
612.39
Quantity
-
+
Total price: 612.39
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6048701
Limiting scanning distance:85 mm ... 1,500 mm
Process pressure:0 bar ... 6 bar, gauge pressure
Ambient temperature operation:-25 °C ... 70 °C
Hysteresis:5 mm
Operating distance:85 mm ... 350 mm
Ripple:± 10 %
Process connection:G 1 A PN 6
Ultrasonic frequency:320 kHz
Ambient storage temperature:-40 °C ... 85 °C
Time delay before availability:≤ 300 ms
Resolution:0.18 mm
Connection type:Round connector M12 x 1, 5-pin
Output signal:1 x PNP + 4 mA ... 20 mA / 0 V ... 10 V
Process temperature:-25 °C ... 70 °C
Measurement:Switch, Continuous
Repeatability:± 0.15 %
Supply voltage:9 V DC ... 30 V DC
Medium:Fluids
Accuracy of sensor element:≤ 2 %
Signal voltage HIGH:Uv - 3 V
Housing material:Stainless steel 1.4571
Power consumption:≤ 80 mA
Response time:≤ 84 ms
Ultrasonic transducer:PTFE coating, FFKM
Enclosure rating:IP 67
