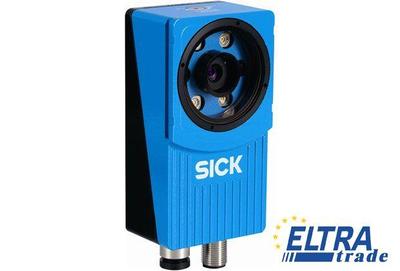

Sick VSPI-4F2311 2D vision

Sick VSPI-4F2311
Item Number: VSPI-4F2311
  • Integrated UV ring light for inspecting luminescent objects
  • Wide field-of-view for large area inspection
  • Advanced ”object locator” tool to locate parts independent of position, rotation and scale
1831.92
Quantity
-
+
Total price: 1831.92
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1050694
Digital inputs:4 inputs (24 V)
Field of view internal illumination:22 mm x 15 mm ... 79 mm x 58 mm
Window material:Glass
Operator interfaces:Inspector Viewer
Toolset:Pattern
Object locator
Edge pixel count
Contour
Pixel count
Focal length:10 mm
Vibration load:IEC 60068-2-6
Ambient storage temperature :-20 °C ... +70 °C
Dimensions (L x W x H):100 mm x 53 mm x 38 mm
Sensing distance:≥ 50 mm
Enclosure rating:IP 67
Ethernet:+
Ambient operating temperature :0 °C ... +45 °C
Sensor:CMOS matrix sensor, gray scale values
Internal lighting:UV
Offline support:Emulator
LED class:Risk group 1 (low risk, IEC62471 : 2006)
Configurable outputs:Output by logical expressions, Store images to FTP overflow
Housing material:Aluminum
Typical performance:40 fps
Sensor resolution:640 px x 480 px
Weight:350 g
Spectral range:Ca. 400 nm ... 750 nm
Default outputs:All pass
Any fail
No object detected
Data transmission rate (Ethernet):100 Mbit/s
Data store and retrieve:Record images on PC
Store images to FTP
30 images device log
Serial (RS-232, RS-422):-
Working distance internal illumination:50 mm ... 200 mm
Output current:100 mA
Ripple:< 5 Vpp
Ethernet communication:EtherNet/IP
Maximum performance:250 fps
I/O Box extension:16 outputs
5 x inputs for object selection
Control of external illumination:5 V TTL
Task:Inspection
Connection types:M12, 12-pin male connector
M12, 4-pin female connector
Shock load:EN 60068-2-27
Maximum encoder frequency:40 kHz
Digital outputs:3 outputs, 24 V (B-type)
Technology:2D
Image analysis
Snapshot
Optics:Exchangeable (M12-mount)
Power consumption:< 450 mA Without output load
Reference images:32 objects
Focus:Adjustable focus (manually)
Number of inspections:32
Supply voltage:24 V DC± 20 %
Robot coordinate alignment:-
Configurable inputs:Reference object selection
Encoder input
External trigger
External teach
Protocol (Ethernet):EtherNet/IP
Configuration software:SOPAS
