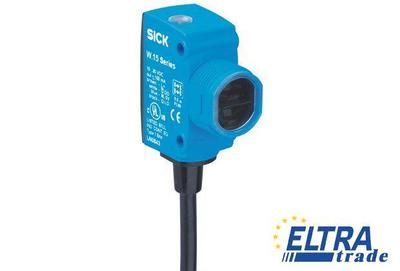

Sick WL15-A1130 Miniature sensors W15

Sick WL15-A1130
Item Number: WL15-A1130
  • Photoelectric retro-reflective sensor in hybrid design with 5 m sensing range
  • Mounting flexibility: M18 front mount using plastic nut or snap ring, side assembly with 24.1 mm through holes
  • Flush mounting possible using the snap ring
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick WL15-A1130 is outdated.

Specification:

Part Number1046279
Sensing range:0.035 m ... 3.5 m
Response time:≤ 1.25 ms
Light source:LED
Weight:20 g
Enclosure rating:IP 67
Light spot size (distance):Ø 140 mm (3.5 m)
Output current Imax.:≤ 100 mA
Ripple:≤ 5 Vpp
Polarisation filter:+
Special device:-
Sensing range max.:0.035 m ... 5 m
Connection type:Cable, 4-wire, 2 m
Sensor/detection principle:Photoelectric retro-reflective sensor, Standard optics
UL File No.:NRKH.E189383 & NRKH7.E189383
Type of light:Visible red light
Ambient operating temperature:-25 °C ... +55 °C
Switching mode:Dark switching
Thread diameter (housing):M18 x 1
Items supplied:Snap-ring and M18 nut
Conductor cross-section:0.14 mm²
Dimensions (W x H x D):16.2 mm x 48.5 mm x 31.9 mm
Supply voltage:10 V DC ... 30 V DC
Wave length:650 nm
Protection class:II
Circuit protection:A, B, D
Ambient storage temperature:-25 °C ... +70 °C
Housing design (light emission):Hybrid
Optics material:PMMA
Housing material:ABS, Plastic
Power consumption:≤ 30 mA
Angle of dispersion:1.5 °
Switching output:NPN, PNP
Switching frequency:400 Hz
Cable material:PUR
