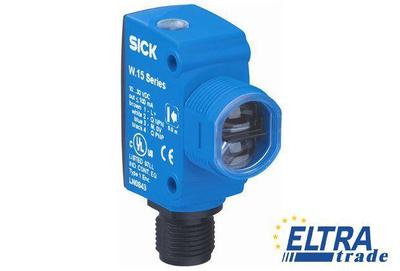

Sick WL15-B2430 Miniature sensors W15

Sick WL15-B2430
Item Number: WL15-B2430
  • Photoelectric retro-reflective sensor in hybrid design with 5 m sensing range
  • Mounting flexibility: M18 front mount using plastic nut or snap ring, side assembly with 24.1 mm through holes
  • Flush mounting possible using the snap ring
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick WL15-B2430 is outdated.


Part Number1043324
Light source:LED
Switching frequency:400 Hz
Circuit protection:A, B, D
Supply voltage:10 V DC ... 30 V DC
Switching output:NPN, PNP
Power consumption:≤ 30 mA
Protection class:II
Sensor/detection principle:Photoelectric retro-reflective sensor, Standard optics
UL File No.:NRKH.E189383 & NRKH7.E189383
Switching mode:Light switching
Items supplied:Snap-ring and M18 nut
Enclosure rating:IP 67
Type of light:Visible red light
Light spot size (distance):Ø 140 mm (3.5 m)
Housing design (light emission):Hybrid
Dimensions (W x H x D):16.2 mm x 48.5 mm x 31.9 mm
Response time:≤ 1.25 ms
Weight:10 g
Thread diameter (housing):M18 x 1
Ambient operating temperature:-25 °C ... +55 °C
Connection type:Connector M12, 4-pin
Special device:-
Angle of dispersion:1.5 °
Ripple:≤ 5 Vpp
Wave length:650 nm
Ambient storage temperature:-25 °C ... +70 °C
Sensing range max.:0.035 m ... 5 m
Sensing range:0.035 m ... 3.5 m
Polarisation filter:+
Output current Imax.:≤ 100 mA
Optics material:PMMA
Housing material:ABS, Plastic
