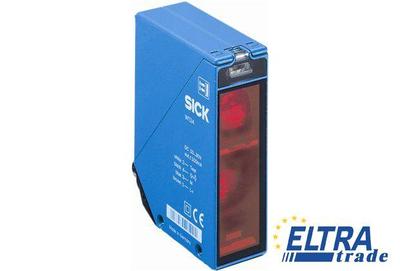

Sick WL24-2V240 Long-range sensor W24

Sick WL24-2V240
Item Number: WL24-2V240
  • Metal housing that has been IP 69k tested
  • Switch selectable PNP or NPN output
  • Switch selectable Light or Dark operating mode
Total price: 173.66
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1018024
Sensing range:0 m ... 15 m
Alarm output:+
Switching mode selector:Selectable via light/dark selector, Selectable via NPN/PNP selector
Delay time:Adjustable via time delay selector switch: 0.5 ... 10 s
Response time:≤ 500 µs
Switching mode:Light/dark switching
Enclosure rating:IP 69K
Protection class:II
Connection type:Terminal connection with M16 gland
Output current Imax.:≤ 100 mA
UL File No.:NRKH.E181493 & NRKH7.E181493
Switching frequency:1,000 Hz
Housing material:Metal, Zinc diecast
Ripple:< 5 Vpp
Housing design (light emission):Rectangular
Optics material:PMMA
Time type:On delay
off delay
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Supply voltage:10 V DC ... 30 V DC
Ambient operating temperature:-40 °C ... +60 °C
Adjustment:Sensitivity adjustment
Light spot size (distance):Ø 250 mm (15 m)
Weight:330 g
Power consumption:≤ 150 mA
Circuit protection:A, C, D
Ambient storage temperature:-40 °C ... +75 °C
Type of light:Visible red light
Sensor/detection principle:Photoelectric retro-reflective sensor, Standard optics
Switching output:NPN, PNP
Polarisation filter:+
Light source:LED
Test input sender off:TE to 0 V
Front screen heating:+
Sensing range max.:0 m ... 22 m
