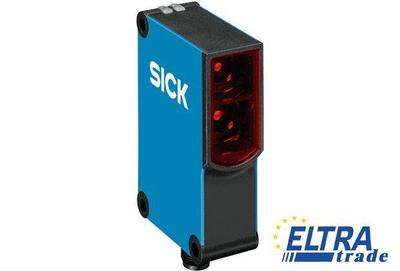

Sick WL27-302610S10 Photoelectric Sensors W27

Sick WL27-302610S10
Item Number: WL27-302610S10
  • Long sensing range with a high operating reserve
  • Quick alignment with red emitting LED
  • Resistant to ambient noise such as crosstalk from another sensor
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1042914
Housing design (light emission):Rectangular
Light source:LED
Enclosure rating:IP 65
Optics material:PMMA
Special features:Supply voltage 24 ... 120 V DC
Circuit protection:A, C
Ambient storage temperature:-40 °C ... 75 °C
Type of light:Infrared light
Light spot (distance):250 mm (2.5 m)
Housing material:ABS
Ambient operating temperature:-40 °C ... 60 °C
UL File-No.:UL No. NRKH.E181493 & cUL No. NRKH7.E181493
Angle of dispersion:6 °
Special device:+
Usage category:DC-21, According to EN 60947-1
Sensor/detection principle:Photoelectric retro-reflective sensor, Standard optics
Response time:≤ 10 ms
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
Supply voltage:24 V DC ... 120 V DC
Connection type:Connector Q6, 6-pin, AC/UC-coding
Switching output:Relay, change-over contacts
Weight:120 g
Sensing range:0.1 m ... 2.5 m
Protection class:II
Power consumption:≤ 2.5 VA
Wave length:880 nm
Sensing range max.:0.1 m ... 2.5 m
Switching current (switching voltage):0.2 mA (120 V DC), 10 mA (24 V DC)
Switching frequency:10 Hz
