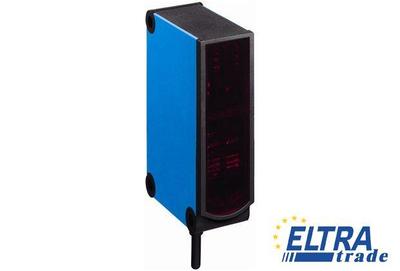

Sick WL27-3P3402S15 Photoelectric Sensors W27

Sick WL27-3P3402S15
Item Number: WL27-3P3402S15
  • Detects objects > 12 mm within a 50 mm light array, regardless of position
  • Sensing range for detection from 0 m to max. 4.5 m
  • Minimum distance of 0.5 m between sensor and reflector for all variants
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1048230
Circuit protection:A, B, C
Output current Imax.:≤ 100 mA
Housing design (light emission):Rectangular
Housing material:ABS, Plastic
Adjustment:Single teach-in button
Special feature:Light band
Optics material:PMMA
Dimensions (W x H x D):24.6 mm x 80 mm x 54.2 mm
Sensor/detection principle:Photoelectric retro-reflective sensor
Special device:-
Switching frequency:± 200 Hz
Ambient storage temperature:-40 °C ... +75 °C
Ambient operating temperature:-30 °C ... +60 °C
Supply voltage:10 V DC ... 30 V DC
Ripple:≤ 5 Vpp
Weight:130 g
Response time:≤ 2.5 ms
Enclosure rating:IP 67
Switching mode:Light/dark switching
Power consumption:≤ 35 mA
Signal voltage PNP HIGH/LOW:Approx. VS - 2.5 V / 0 V
Connection type:Cable with connector M12, 4-pin, 270 mm
Cable material:PVC
Output function:Complementary
Type of light:Visible red light
Sensing range max.:0 m ... 2 m, 0 m ... 4.5 m
Switching output:PNP
Distance of the sensor to reflector:0.5 m ... 4.5 m
Light source:PinPoint LED
Sensing range:0 m ... 2 m, 0 m ... 4.5 m
UL File No.:NRKH.E181493 & NRKH7.E181493
Minimum object size:16 mm, position-independent detection within the light array
Protection class:II
