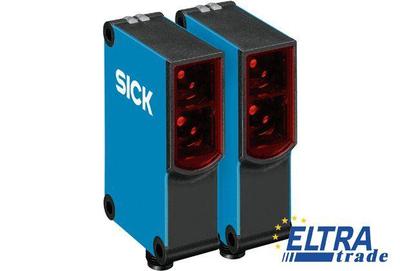

Sick WSE27-3N2430 Photoelectric Sensors W27

Sick WSE27-3N2430
Item Number: WSE27-3N2430
  • Long sensing range with a high operating reserve
  • Quick alignment with red emitter
  • Resistant to environmental noise such as ambient light
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick WSE27-3N2430 is outdated.

Specification:

Part Number1028072
Signal voltage NPN HIGH / LOW:Approx. VS / < 2.5 V
UL File No.:NRKH.E181493 & NRKH7.E181493
Angle of dispersion:Ca. 1.5 °
Ambient operating temperature:-40 °C ... 60 °C
Sensor/detection principle:Through-beam photoelectric sensor
Switching frequency:1,000 Hz
Housing design (light emission):Rectangular
Part number of individual components:Receiver, WE27-3N2430, 2033766, Sender, WS27-3D2430, 2033560
Ambient storage temperature:-40 °C ... 75 °C
Optics material:PMMA
Weight:200 g
Output function:Complementary
Housing material:ABS, Plastic
Output current Imax.:≤ 100 mA
Sensing range:0 m ... 25 m
Type of light:Visible red light
Response time:≤ 500 µs
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
Enclosure rating:IP 69K
Connection type:Connector M12, 4-pin
Switching mode:Light/dark switching
Power consumption, receiver:20 mA
Supply voltage:10 V DC ... 30 V DC
Protection class:II
Test input sender off:TE to VS
Wave length:645 nm
Circuit protection:A, B, C
Sensing range max.:0 m ... 35 m
Switching output:NPN
Angle of reception:Ca. 3 °
Light source:LED
Power consumption, sender:35 mA
Light spot size (distance):Ø 600 mm (25 m)
