Sick WSE27-3P2430P01 Photoelectric Sensors W27

Sick WSE27-3P2430P01
Item Number: WSE27-3P2430P01
  • Long sensing range with a high operating reserve
  • Quick alignment with red emitter
  • Resistant to environmental noise such as ambient light
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1029227
Circuit protection:A, B, C
Special device:+
Optics material:PMMA
Sensor/detection principle:Through-beam photoelectric sensor
Power consumption, sender:35 mA
Sensing range max.:0 m ... 35 m
Light spot size (distance):Ø 600 mm (25 m)
Angle of reception:Ca. 3 °
Supply voltage:10 V DC ... 30 V DC
Wave length:645 nm
Switching mode:Light/dark switching
Output function:Complementary
Weight:200 g
Connection type:Connector M12, 4-pin
Angle of dispersion:Ca. 1.5 °
Housing design (light emission):Rectangular
Ambient operating temperature:-40 °C ... 60 °C
UL File No.:NRKH.E181493 & NRKH7.E181493
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
Part number of individual components:;NV
Enclosure rating:IP 69K
Output current Imax.:≤ 100 mA
Signal voltage PNP HIGH / LOW:Approx. VS - 2.5 V / 0 V

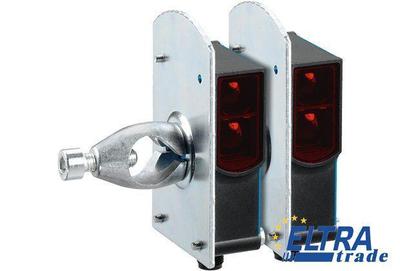

Special features:WSE27-3P2430, 1027790, pre-assembled on the bracket BEF-KHS-A01
Protection class:II
Switching output:PNP
Switching frequency:1,000 Hz
Type of light:Visible red light
Power consumption, receiver:20 mA
Ambient storage temperature:-40 °C ... 75 °C
Sensing range:0 m ... 25 m
Housing material:ABS, Plastic
Response time:≤ 500 µs
Light source:LED
