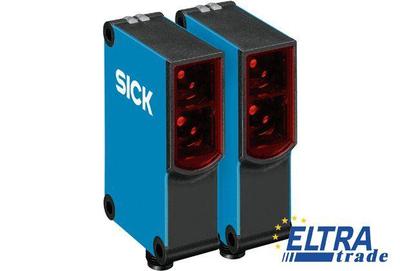

Sick WSE27-3P3730 Photoelectric Sensors W27

Sick WSE27-3P3730
Item Number: WSE27-3P3730
  • Long sensing range with a high operating reserve
  • Quick alignment with red emitter
  • Resistant to environmental noise such as ambient light
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1027794
Switching frequency:1,000 Hz
Ambient storage temperature:-40 °C ... 75 °C
Circuit protection:A, B, C
Signal voltage PNP HIGH / LOW:Approx. VS - 2.5 V / 0 V
Type of light:Visible red light
Housing material:ABS, Plastic
Switching output:PNP
UL File-No.:UL No. NRKH.E181493 & cUL No. NRKH7.E181493
Power consumption, sender:35 mA
Part number of individual components:Receiver, WE27-3P3730, 2033603, Sender, WS27-3D3730, 2033596
Angle of dispersion:Ca. 1.5 °
Wave length:645 nm
Optics material:PMMA
Response time:≤ 500 µs
Angle of reception:Ca. 3 °
Test input sender off:TE to 0 V
Sensor/detection principle:Through-beam photoelectric sensor
Protection class:II
Switching mode:Light/dark switching
Light spot size (distance):Ø 600 mm (25 m)
Cable material:PVC
Weight:240 g
Light source:LED
Output current Imax.:≤ 100 mA
Supply voltage:10 V DC ... 30 V DC
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
Ripple:≤ 5 Vpp
Sensing range max.:0 m ... 35 m
Enclosure rating:IP 66
IP 67
Housing design (light emission):Rectangular
Ambient operating temperature:-40 °C ... 60 °C
Output function:Complementary
Power consumption, receiver:20 mA
Connection type:Cable with connector Q7, 7-pin, DC-coding, 150 mm
Sensing range:0 m ... 25 m
