Sick WSE4T-3F1430 Other Photoelectric Sensors

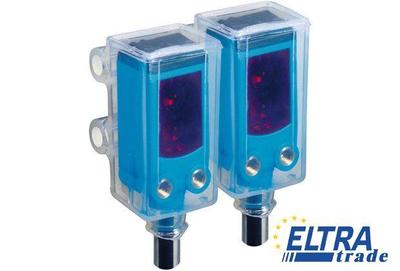

Sick WSE4T-3F1430
Item Number: WSE4T-3F1430
  • Sensor and cable enclosed in a protective Teflon-coated housing
  • Suitable for use in the food and beverage industry
  • Through-beam photoelectric sensor with a sensing range of 0 - 3 m
311.45
Quantity
-
+
Total price: 311.45
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1029647
Sensing range max.:0 m ... 3 m
Light spot size (distance):Ø 210 mm (2 m)
Weight:30 g
Sensing range:0 m ... 2.5 m
Switching output:PNP
Sensor/detection principle:Through-beam photoelectric sensor
Supply voltage:10 V DC ... 30 V DC
Ripple:< 5 Vpp
Dimensions (W x H x D):22 mm x 42 mm x 21.8 mm
Protection class:III
Response time:< 0.5 ms
Circuit protection:A, C, D
Cable material:PVC/PTFE coating
Ambient storage temperature:-40 °C ... +75 °C
Power consumption:≤ 20 mA
Type of light:Visible red light
Cable diameter:3.4 mm
UL File No.:NRKH.E181493 & NRKH7.E181493
Enclosure rating:IP 68
IP 69K
Wave length:650 nm
Switching mode:Dark switching
Test input sender off:TE to 0 V
Connection type:Cable, 3-wire, 5 m
Housing design (light emission):Rectangular
Light source:PinPoint LED
Conductor cross-section:0.14 mm²
Ambient operating temperature:-40 °C ... +60 °C
Optics material:PMMA
Switching frequency:1,000 Hz
Output current Imax.:≤ 100 mA
Housing material:PTFE
