Sick WT18-3N130 Other Photoelectric Sensors

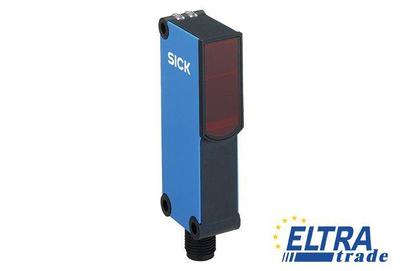

Sick WT18-3N130
Item Number: WT18-3N130
  • Sender LED with visible red light
  • Precise background suppression
  • Sensing range adjustment via potentiometer
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1025897
Housing material:ABS, Plastic
Circuit protection:A, C, D
Adjustment:Potentiometer, 4 turns
Cable material:PVC
Sensing range:50 mm ... 600 mm
Light source:LED
Sensing range max.:10 mm ... 600 mm
Type of light:Visible red light
Housing design (light emission):Rectangular
Switching output:NPN
Enclosure rating:IP 67
Ambient storage temperature:-40 °C ... +75 °C
Output current Imax.:100 mA
Weight:120 g
Ripple:< 5 Vpp
Response time:< 700 µs
Output function:Complementary
Light spot size (distance):Ø 15 mm (300 mm)
Power consumption:40 mA
Switching mode:Light/dark switching
Ambient operating temperature:-40 °C ... +60 °C
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Connection type:Cable, 4-wire, 2 m
UL File No.:NRKH.E181493 & NRKH7.E181493
Switching frequency:700 Hz
Supply voltage:10 V DC ... 30 V DC
Dimensions (W x H x D):17.6 mm x 75.5 mm x 33.5 mm
Optics material:PMMA
Continuous threshold adaption:-
