Sick WT18-3N410 Other Photoelectric Sensors

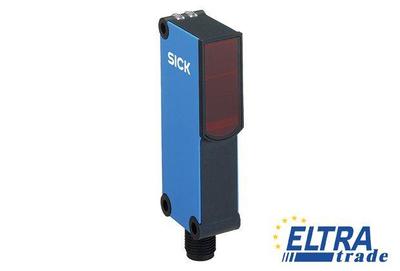

Sick WT18-3N410
Item Number: WT18-3N410
  • Sender LED with infrared light
  • Precise background suppression
  • Sensing range setting via potentiometer
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1025893
Type of light:Infrared light
Optics material:PMMA
Housing design (light emission):Rectangular
Enclosure rating:IP 67
Power consumption:55 mA
Ambient storage temperature:-40 °C ... +75 °C
Output current Imax.:100 mA
Output function:Complementary
Supply voltage:10 V DC ... 30 V DC
Response time:< 700 µs
Housing material:ABS, Plastic
Adjustment:Potentiometer, 4 turns
Dimensions (W x H x D):17.6 mm x 75.5 mm x 33.5 mm
Connection type:Connector M12, 4-pin
Light source:LED
Weight:40 g
Ambient operating temperature:-40 °C ... +60 °C
Sensing range max.:10 mm ... 700 mm
Switching output:NPN
Switching frequency:700 Hz
Sensing range:50 mm ... 700 mm
Continuous threshold adaption:-
Light spot size (distance):Ø 20 mm (400 mm)
Circuit protection:A, C, D
Ripple:< 5 Vpp
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Switching mode:Light/dark switching
UL File No.:NRKH.E181493 & NRKH7.E181493
