Sick WT18-3P410 Other Photoelectric Sensors

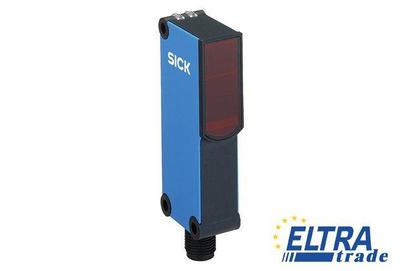

Sick WT18-3P410
Item Number: WT18-3P410
  • Sender LED with infrared light
  • Precise background suppression
  • Sensing range setting via potentiometer
257.49
Quantity
-
+
Total price: 257.49
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1025889
Switching frequency:700 Hz
UL File No.:NRKH.E181493 & NRKH7.E181493
Response time:< 700 µs
Ambient storage temperature:-40 °C ... +75 °C
Continuous threshold adaption:-
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Dimensions (W x H x D):17.6 mm x 75.5 mm x 33.5 mm
Switching output:PNP
Enclosure rating:IP 67
Ripple:< 5 Vpp
Switching mode:Light/dark switching
Sensing range:50 mm ... 700 mm
Power consumption:55 mA
Output function:Complementary
Light source:LED
Sensing range max.:10 mm ... 700 mm
Adjustment:Potentiometer, 4 turns
Supply voltage:10 V DC ... 30 V DC
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Optics material:PMMA
Ambient operating temperature:-40 °C ... +60 °C
Housing material:ABS, Plastic
Light spot size (distance):Ø 20 mm (400 mm)
Type of light:Infrared light
Weight:40 g
Output current Imax.:100 mA
Housing design (light emission):Rectangular
