Sick WT18-3P420S05 Other Photoelectric Sensors

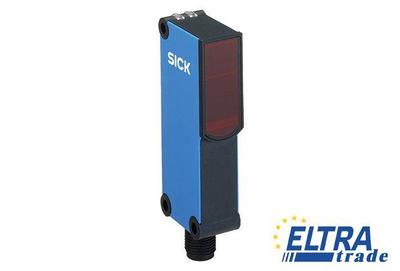

Sick WT18-3P420S05
Item Number: WT18-3P420S05
  • Sender LED with infrared light
  • Precise background suppression
  • Adjustable sensing distance
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick WT18-3P420S05 is outdated.

Specification:

Part Number1026623
Switching frequency:400 Hz
Ambient operating temperature:-40 °C ... +60 °C
Sensing range max.:10 mm ... 850 mm
Output current Imax.:100 mA
Housing design (light emission):Rectangular
Weight:40 g
Type of light:Infrared light
Enclosure rating:IP 67
Response time:< 1,250 µs
Switching output:PNP
Continuous threshold adaption:-
Dimensions (W x H x D):17.6 mm x 75.5 mm x 33.5 mm
Light source:LED
Circuit protection:A, C, D
Ambient storage temperature:-40 °C ... +75 °C
Output function:Complementary
Switching mode:Light/dark switching
Alarm output:-
Power consumption:55 mA
Housing material:ABS, Plastic
Sensing range:50 mm ... 850 mm
Adjustment:Potentiometer, 4 turns
IO-Link:-
Light spot size (distance):Ø 30 mm (600 mm)
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
UL File No.:NRKH.E181493 & NRKH7.E181493
Connection type:Connector M12, 4-pin
Supply voltage:10 V DC ... 30 V DC
Optics material:PMMA
Health output:-
Special device:+
Ripple:< 5 Vpp
