Sick WT18-3P420S09 Other Photoelectric Sensors

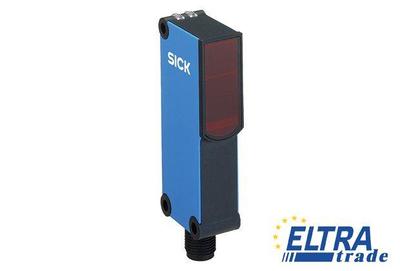

Sick WT18-3P420S09
Item Number: WT18-3P420S09
  • Sender LED with infrared light
  • Precise background suppression
  • Adjustable sensing distance
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1027572
IO-Link:-
Housing design (light emission):Rectangular
Light spot size (distance):Ø 30 mm (600 mm)
Ambient storage temperature:-40 °C ... +75 °C
Power consumption:55 mA
Optics material:PMMA
UL File No.:NRKH.E181493 & NRKH7.E181493
Dimensions (W x H x D):17.6 mm x 75.5 mm x 33.5 mm
Adjustment:Potentiometer, 4 turns
Response time:< 700 µs
Enclosure rating:IP 67
Sensing range:50 mm ... 1,000 mm
Supply voltage:10 V DC ... 30 V DC
Switching mode:Light/dark switching
Light source:LED
Ripple:< 5 Vpp
Circuit protection:A, C, D
Alarm output:-
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Connection type:Connector M12, 4-pin
Special device:+
Continuous threshold adaption:-
Sensing range max.:10 mm ... 700 mm
Health output:-
Switching output:PNP
Weight:40 g
Type of light:Infrared light
Output function:Complementary
Switching frequency:700 Hz
Output current Imax.:100 mA
Ambient operating temperature:-40 °C ... +60 °C
Housing material:ABS, Plastic
