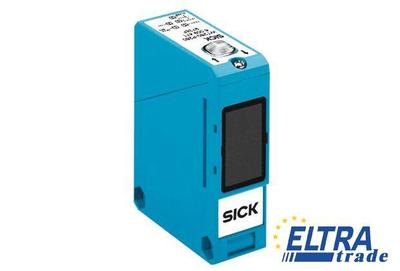

Sick WT260-P460 Other Photoelectric Sensors
Item Number: WT260-P460
- Long sensing ranges
- Background suppression or energetic sensory types
- Mounting bracket included in delivery
- Overview
- Datasheet
- Alternative numbers
- Comments
Specification:
| Part Number | 1011540 |
| Weight: | 120 g |
| Dimensions (W x H x D): | 25 mm x 77.8 mm x 63 mm |
| Light source: | LED |
| Ripple: | ≤ 5 Vpp |
| Circuit protection: | A, B, C, D |
| Sensing range: | 0 mm ... 380 mm, 75 mm ... 160 mm |
| Connection type: | Connector M12, 4-pin |
| Ambient storage temperature: | -40 °C ... 70 °C |
| Protection class: | II |
| UL File-No.: | UL No. NRNT2.E128350 & cUL No. NRNT8.E128350 |
| Items supplied: | Mounting bracket BEF-W260 |
| Housing design (light emission): | Rectangular |
| Adjustment of operating distance: | Potentiometer, 270° |
| Switching output: | PNP, Light/dark-switching, selectable via light/dark selector, open collector |
| Light spot (distance): | 17 mm (300 mm) |
| Type of light: | Infrared light |
| Sensor/detection principle: | Photoelectric proximity sensor, Background suppression |
| Supply voltage: | 10 V DC ... 30 V DC |
| Enclosure rating: | IP 66 |
| Sensing range max.: | 0 mm ... 380 mm |
| Optics material: | PC |
| Ambient operating temperature: | -25 °C ... 55 °C |
| Test input sender off: | TE to VS |
| Angle of dispersion: | 1.5 ° |
| Switching frequency: | 250 Hz |
| Output current Imax.: | 100 mA |
| Power consumption: | ≤ 35 mA |
| Housing material: | ABS |
| Alarm output: | 100 mA, permanently |
| Response time: | ≤ 2 ms |
