Sick WT27L-2F430A Photoelectric Sensors W27

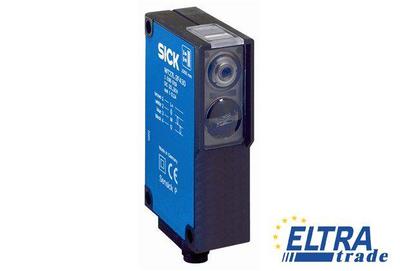

Sick WT27L-2F430A
Item Number: WT27L-2F430A
  • 2 mm diameter light spot at a distance of 400 mm
  • Precise adjustable background suppression
  • Visible red laser LED
Total price: 698.41
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1016247
Enclosure rating:IP 67
Connection type:Connector M12, 4-pin
Response time:< 500 µs
Housing design (light emission):Rectangular
Sensing range:100 mm ... 800 mm
Ripple:≤ 5 %
Switching mode:Light/dark switching
Output current Imax.:≤ 100 mA
Power consumption:≤ 35 mA
Light spot size (distance):Ø 2 mm (400 mm)
Weight:100 g
Light source:Laser
Dimensions (W x H x D):24.6 mm x 80 mm x 53.5 mm
Laser class:2, 2 (EN 60825-1), low power. Eyes normally protected by averting reaction and eyelid closing reflex
Protection class:II
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Wave length:650 nm
Switching output:PNP
Circuit protection:A, C, D
Output function:Complementary
Housing material:ABS, Plastic
Ambient storage temperature:-10 °C ... +75 °C
Sensing range max.:100 mm ... 800 mm
Switching frequency:1,000 Hz
Supply voltage:10 V DC ... 30 V DC
Special device:+
Type of light:Visible red light
Ambient operating temperature:-10 °C ... +45 °C
