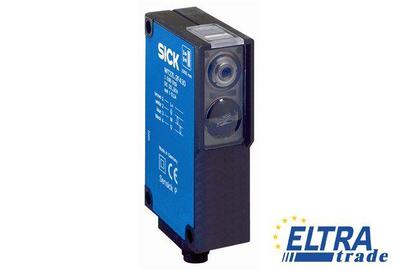

Sick WT27L-2S830A Photoelectric Sensors W27

Sick WT27L-2S830A
Item Number: WT27L-2S830A
  • 2 mm diameter light spot at a distance of 400 mm
  • Precise adjustable background suppression
  • Visible red laser LED
706.90
Quantity
-
+
Total price: 706.90
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1016359
Adjustment:Potentiometer
Supply voltage:24 V AC/DC ... 240 V AC/DC
Light spot size (distance):Ø 2 mm (400 mm)
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Output function:Change-over contacts
Wave length:650 nm
Connection type:Mini connector 7/8", 5-pin
Sensing range max.:100 mm ... 800 mm
Housing material:ABS, Plastic
Circuit protection:A, C
Power consumption:< 2 VA
Enclosure rating:IP 65
Switching current (switching voltage):4 A (24 V DC), 4 A (240 V AC)
Sensing range:100 mm ... 800 mm
Switching output:Relay, electrically isolated
UL File No.:NRKH.E181493 & NRKH7.E181493
Light source:Laser
Dimensions (W x H x D):24.6 mm x 80 mm x 53.5 mm
Switching frequency:10 Hz
Housing design (light emission):Rectangular
Type of light:Visible red light
Laser class:2, 2 (EN 60825-1), low power. Eyes normally protected by averting reaction and eyelid closing reflex
Ambient storage temperature:-10 °C ... +75 °C
Special device:+
Ambient operating temperature:-10 °C ... +45 °C
Weight:100 g
Protection class:II
Response time:< 6 ms
