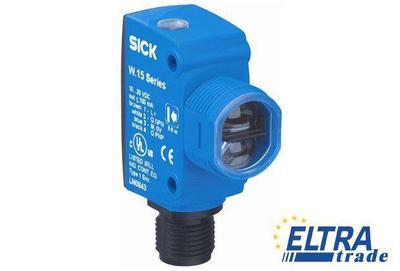

Sick WTB15-B2431 Miniature sensors W15

Sick WTB15-B2431
Item Number: WTB15-B2431
  • Photoelectric proximity sensor with background suppression and 200 mm sensing distance
  • Suppression of background reflections based on OES3 ASIC technology, with second LED emitter
  • Red PinPoint LED
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick WTB15-B2431 is outdated.

Specification:

Part Number1043326
Connection type:Connector M12, 4-pin
Circuit protection:A, B, D
Ambient operating temperature:-40 °C ... +60 °C
Optics material:PMMA
Items supplied:Snap-ring and M18 nut
Switching frequency:1,000 Hz
Light spot size (distance):Ø 7 mm (50 mm)
Ambient storage temperature:-40 °C ... +75 °C
Thread diameter (housing):M18 x 1
Housing material:ABS, Plastic
UL File No.:NRKH.E189383 & NRKH7.E189383
Response time:< 0.5 ms
Light source:PinPoint LED
Type of light:Visible red light
Housing design (light emission):Hybrid
Sensing range max.:4 mm ... 200 mm
Supply voltage:10 V DC ... 30 V DC
Wave length:650 nm
Protection class:II
Sensing range:15 mm ... 200 mm
Enclosure rating:IP 66
IP 67
Ripple:< 5 Vpp
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Switching output:NPN, PNP
Dimensions (W x H x D):16.2 mm x 48.5 mm x 31.9 mm
Switching mode:Light switching
Output current Imax.:≤ 100 mA
Weight:10 g
Power consumption:≤ 30 mA
