Sick WTB15-P1131 Miniature sensors W15

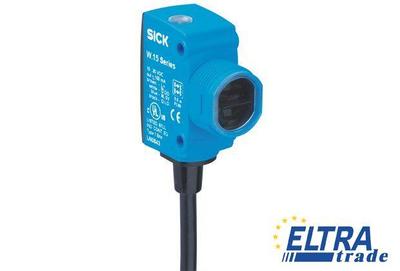

Sick WTB15-P1131
Item Number: WTB15-P1131
  • Photoelectric proximity sensor with background suppression and 200 mm sensing distance
  • Suppression of background reflections based on OES3 ASIC technology, with second LED emitter
  • Red PinPoint LED
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick WTB15-P1131 is outdated.


Part Number1046284
Housing material:ABS, Plastic
Light spot size (distance):Ø 7 mm (50 mm)
Optics material:PMMA
Output current Imax.:≤ 100 mA
Protection class:II
Ambient operating temperature:-40 °C ... +60 °C
Type of light:Visible red light
Enclosure rating:IP 66
IP 67
Dimensions (W x H x D):16.2 mm x 48.5 mm x 31.9 mm
Cable material:PUR
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Ambient storage temperature:-40 °C ... +75 °C
Output function:Complementary
UL File No.:NRKH.E189383 & NRKH7.E189383
Response time:< 0.5 ms
Connection type:Cable, 4-wire, 2 m
Conductor cross-section:0.14 mm²
Power consumption:≤ 30 mA
Weight:20 g
Thread diameter (housing):M18 x 1
Housing design (light emission):Hybrid
Circuit protection:A, B, D
Switching mode:Light/dark switching
Ripple:< 5 Vpp
Supply voltage:10 V DC ... 30 V DC
Switching frequency:1,000 Hz
Items supplied:Snap-ring and M18 nut
Sensing range:15 mm ... 200 mm
Wave length:650 nm
Switching output:PNP
Light source:PinPoint LED
Sensing range max.:4 mm ... 200 mm
