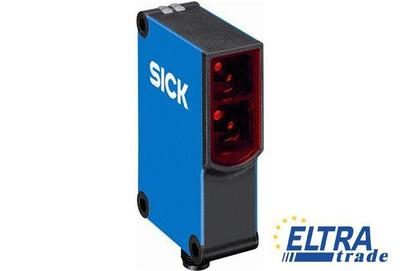

Sick WTB27-3P1211 Photoelectric Sensors W27

Sick WTB27-3P1211
Item Number: WTB27-3P1211
  • Precise background suppression with no scanning distance drift
  • PinPoint technology: intense red LED with consistent light spot
  • Resistant to ambient light, optical reflections, and crosstalk from other photoelectric devices
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1028065
Adjustment:Potentiometer
Connection type:Cable, 4-wire, 5 m
Weight:300 g
Light spot size (distance):Ø 25 mm (800 mm)
Switching frequency:350 Hz
Switching output:PNP
Ambient storage temperature:-40 °C ... 75 °C
Circuit protection:A, B, C
Wave length:880 nm
Sensing range:100 mm ... 1,600 mm
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Protection class:II
Optics material:PMMA
Supply voltage:10 V DC ... 30 V DC
Cable material:PVC
Output function:Complementary
Ambient operating temperature:-40 °C ... 60 °C
Output current Imax.:≤ 100 mA
Power consumption:≤ 40 mA
Response time:≤ 1.5 ms
UL File No.:NRKH.E181493 & NRKH7.E181493
Light source:LED
Enclosure rating:IP 66
IP 67
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
Switching mode:Light/dark switching
Housing material:ABS, Plastic
Signal voltage PNP HIGH / LOW:Approx. VS - 2.5 V / 0 V
Housing design (light emission):Rectangular
Sensing range max.:30 mm ... 1,600 mm
Type of light:Infrared light
