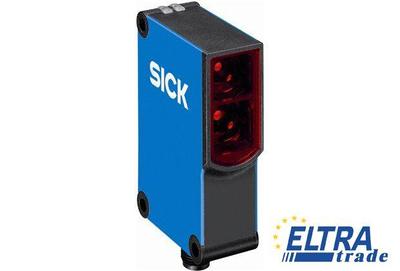

Sick WTB27-3P2411S12 Photoelectric Sensors W27

Sick WTB27-3P2411S12
Item Number: WTB27-3P2411S12
  • Precise background suppression with no scanning distance drift
  • PinPoint technology: intense red LED with consistent light spot
  • Resistant to ambient light, optical reflections, and crosstalk from other photoelectric devices
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1028206
Output current Imax.:≤ 100 mA
Supply voltage:10 V DC ... 30 V DC
Power consumption:≤ 40 mA
Protection class:II
Output function:Complementary
Housing design (light emission):Rectangular
Wave length:880 nm
Signal voltage PNP HIGH / LOW:Approx. VS - 2.5 V / 0 V
Ambient storage temperature:-40 °C ... 75 °C
Optics material:PMMA
Ambient operating temperature:-40 °C ... 60 °C
Sensing range max.:30 mm ... 1,600 mm
Housing material:ABS, Plastic
Special device:+
Response time:≤ 1.5 ms
Type of light:Infrared light
Sensing range:100 mm ... 1,600 mm
Light source:LED
Connection type:Connector M12, 4-pin
Weight:100 g
Special features:For extreme shock loads
Switching mode:Light/dark switching
Enclosure rating:IP 69K
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Circuit protection:A, B, C
Switching output:PNP
UL File No.:NRKH.E181493 & NRKH7.E181493
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
Switching frequency:350 Hz
Adjustment:Potentiometer
Light spot size (distance):Ø 25 mm (800 mm)
