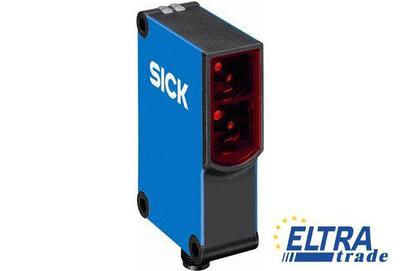

Sick WTB27-3P2441S04 Photoelectric Sensors W27

Sick WTB27-3P2441S04
Item Number: WTB27-3P2441S04
  • Precise background suppression with no scanning distance drift
  • PinPoint technology: intense red LED with consistent light spot
  • Resistant to ambient light, optical reflections, and crosstalk from other photoelectric devices
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick WTB27-3P2441S04 is outdated.

Specification:

Part Number1029487
Special features:Sensing range preset at 250 mm on an object with 18 % remission
Weight:100 g
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
Special device:+
Optics material:PMMA
Housing material:ABS, Plastic
Connection type:Connector M12, 4-pin
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Output function:Complementary
Supply voltage:10 V DC ... 30 V DC
Ambient storage temperature:-40 °C ... 75 °C
Power consumption:≤ 35 mA
Type of light:Visible red light
Sensing range max.:100 ... 250 mm, 30 mm ... 1,100 mm
Light source:LED
Circuit protection:A, B, C
Output current Imax.:≤ 100 mA
Adjustment:Potentiometer fixed with glue
Ambient operating temperature:-40 °C ... 60 °C
UL File No.:NRKH.E181493 & NRKH7.E181493
Light spot size (distance):Ø 15 mm (500 mm)
Switching output:PNP
Protection class:II
Housing design (light emission):Rectangular
Response time:≤ 1.5 ms
Switching mode:Light/dark switching
Signal voltage PNP HIGH / LOW:Approx. VS - 2.5 V / 0 V
Sensing range:100 mm ... 250 mm
Wave length:660 nm
Enclosure rating:IP 69K
Switching frequency:350 Hz
