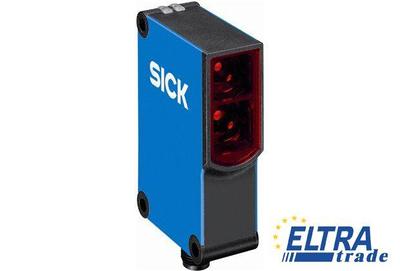

Sick WTB27-3P3461 Photoelectric Sensors W27

Sick WTB27-3P3461
Item Number: WTB27-3P3461
  • Precise background suppression with no scanning distance drift
  • PinPoint technology: intense red LED with consistent light spot
  • Resistant to ambient light, optical reflections, and crosstalk from other photoelectric devices
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1048546
Enclosure rating:IP 69K
Ripple:≤ 5 Vpp
Protection class:II
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
IO-Link:-
Light spot size (distance):Ø 12 mm (800 mm)
Front screen heating:-
Connection type:Cable with connector M12, 4-pin
Adjustment:Potentiometer
Switching output:PNP
Ambient storage temperature:-40 °C ... +75 °C
Sensing range max.:30 mm ... 2,000 mm
Signal voltage PNP HIGH/LOW:Approx. VS - 2.5 V / 0 V
Type of light:Visible red light
Response time:≤ 1.5 ms
Switching frequency:350 Hz
Circuit protection:A, B, C
Sensing range:100 mm ... 2,000 mm
Housing material:ABS, Plastic
Special device:-
Switching mode:Light/dark switching
Ambient operating temperature:-40 °C ... +60 °C
Output function:Complementary
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
UL File No.:NRKH.E181493 & NRKH7.E181493
Output current Imax.:≤ 100 mA
Supply voltage:10 V DC ... 30 V DC
Light source:PinPoint LED
Housing design (light emission):Rectangular
Optics material:PMMA
