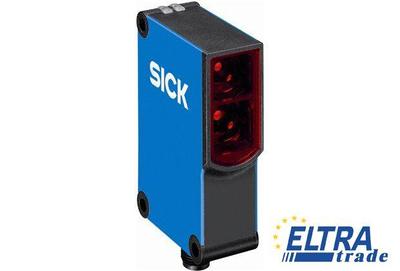

Sick WTB27-3P3711 Photoelectric Sensors W27

Sick WTB27-3P3711
Item Number: WTB27-3P3711
  • Precise background suppression with no scanning distance drift
  • PinPoint technology: intense red LED with consistent light spot
  • Resistant to ambient light, optical reflections, and crosstalk from other photoelectric devices
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1027758
Light source:LED
Optics material:PMMA
Weight:120 g
Output function:Complementary
Type of light:Infrared light
Sensing range:100 mm ... 1,600 mm
Switching output:PNP
Switching mode:Light/dark switching
Circuit protection:A, B, C
Supply voltage:10 V DC ... 30 V DC
Sensing range max.:30 mm ... 1,600 mm
Switching frequency:350 Hz
Connection type:Cable with connector Q7, 7-pin, DC-coding, 150 mm
Light spot size (distance):Ø 25 mm (800 mm)
Ripple:≤ 5 Vpp
Enclosure rating:IP 66
IP 67
Power consumption:≤ 40 mA
Cable material:PVC
Protection class:II
Ambient operating temperature:-40 °C ... 60 °C
Housing design (light emission):Rectangular
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
Adjustment:Potentiometer
Wave length:880 nm
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Ambient storage temperature:-40 °C ... 75 °C
Housing material:ABS, Plastic
Response time:≤ 1.5 ms
Output current Imax.:≤ 100 mA
Signal voltage PNP HIGH / LOW:Approx. VS - 2.5 V / 0 V
UL File No.:NRKH.E181493 & NRKH7.E181493
