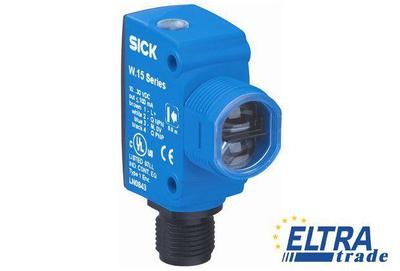

Sick WTE15-B2411 Miniature sensors W15

Sick WTE15-B2411
Item Number: WTE15-B2411
  • Energetic photoelectric sensor in hybrid design with 350 mm sensing distance
  • M18 front mount using plastic nut or snap ring, side assembly with 24.1 mm through holes
  • Flush mounting possible using the snap ring
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick WTE15-B2411 is outdated.

Specification:

Part Number1043317
Items supplied:Snap-ring and M18 nut
Output current Imax.:≤ 100 mA
Sensing range:10 mm ... 250 mm
Wave length:950 nm
Ambient storage temperature:-25 °C ... +70 °C
Response time:≤ 1.25 ms
Connection type:Connector M12, 4-pin
Type of light:Infrared light
Optics material:PMMA
Ripple:≤ 5 Vpp
Switching mode:Light switching
Switching output:NPN, PNP
Sensor/detection principle:Photoelectric proximity sensor, energetic
Housing material:ABS, Plastic
Thread diameter (housing):M18 x 1
Sensing range max.:10 mm ... 350 mm
Power consumption:≤ 30 mA
Circuit protection:A, B, D
Light spot size (distance):Ø 50 mm (350 mm)
Weight:10 g
Angle of dispersion:4.5 °
Ambient operating temperature:-25 °C ... +55 °C
Supply voltage:10 V DC ... 30 V DC
Dimensions (W x H x D):16.2 mm x 48.5 mm x 31.9 mm
Housing design (light emission):Hybrid
Switching frequency:400 Hz
Light source:LED
Enclosure rating:IP 67
UL File No.:NRKH.E189383 & NRKH7.E189383
Protection class:II
