Spirax Sarco Steam Solutions: What Products They Offer and Where to Use Them

Looking for specific components? Explore the full range of Spirax Sarco equipment in the our catalog to find the right solutions for your plant.

Steam trap types:

• Thermodynamic. I use them for main steam line drains. They are strong, operate as a non-return valve, and are not at risk of freezing;

• Thermostatic. This type of trap is perfect for use in tracing systems. They allow for the draining of condensate only after it has cooled and the built-up residual heat has been used within the system;

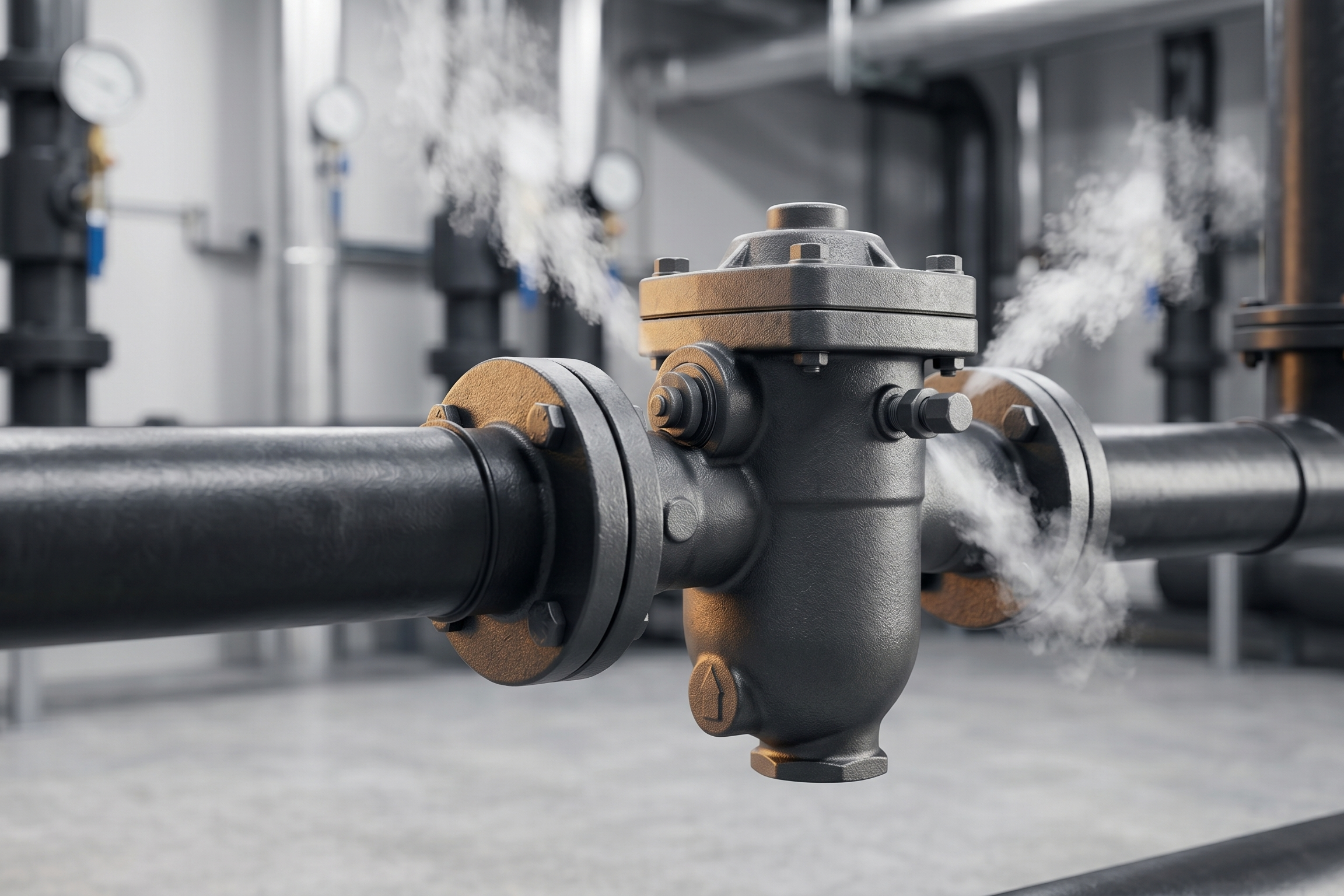

• Mechanical (float & bucket) trap. My choice for heat exchangers. Float traps allow for the immediate removal of condensate without the heating surface being heated any longer.

Field insights: The majority of wasted energy I encounter is due to failed or poorly chosen steam traps. A leaking trap can waste as much energy as an open window in winter.

If you are experiencing water hammer or energy loss, it might be time for a replacement. Check out our selection of genuine Spirax Sarco steam traps to find the right thermodynamic, thermostatic, or mechanical trap for your line.

Control Valves and Pressure Regulators

Steam is useless if its pressure fluctuates. High-quality Spirax Sarco valves allow you to maintain steam parameters with precision down to tenths of a bar or degree:

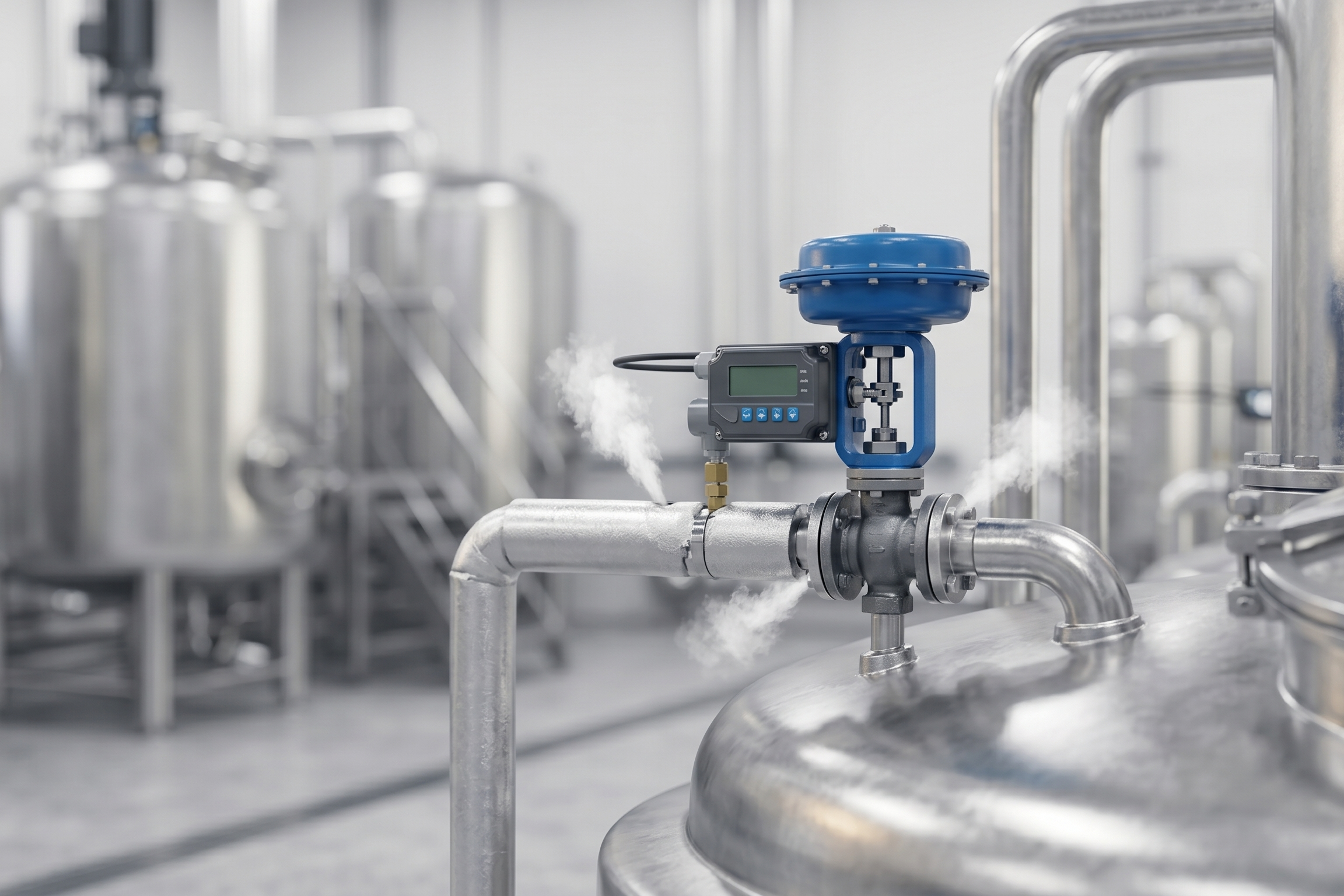

• Control valves. For automated systems with PID control, I choose valves with positioners. This allows me to precisely adjust the temperature in reactors or pasteurizers;

• Pressure-reducing valves. The DP series is legendary. Pilot regulators in this series handle sudden changes in steam flow much more reliably than any budget-friendly alternatives;

• Safety valves. Safety comes first. I install Spirax safety valves on every boiler and pressure-reducing unit, confident that they will operate precisely at the specified pressure.

Check out our selection of Spirax Sarco valves available for worldwide shipping.

Heat Exchange and Energy Recovery Solutions

In today's environment, simply burning gas is a budgetary blunder. Using steam system components Spirax Sarco allows you to recycle energy within your facility:

• Heat exchangers. Compact plate and shell-and-tube modules (e.g., Easiheat) that provide immediate heating and accurately control the temperature, eliminating the need to have large, inefficient tanks;

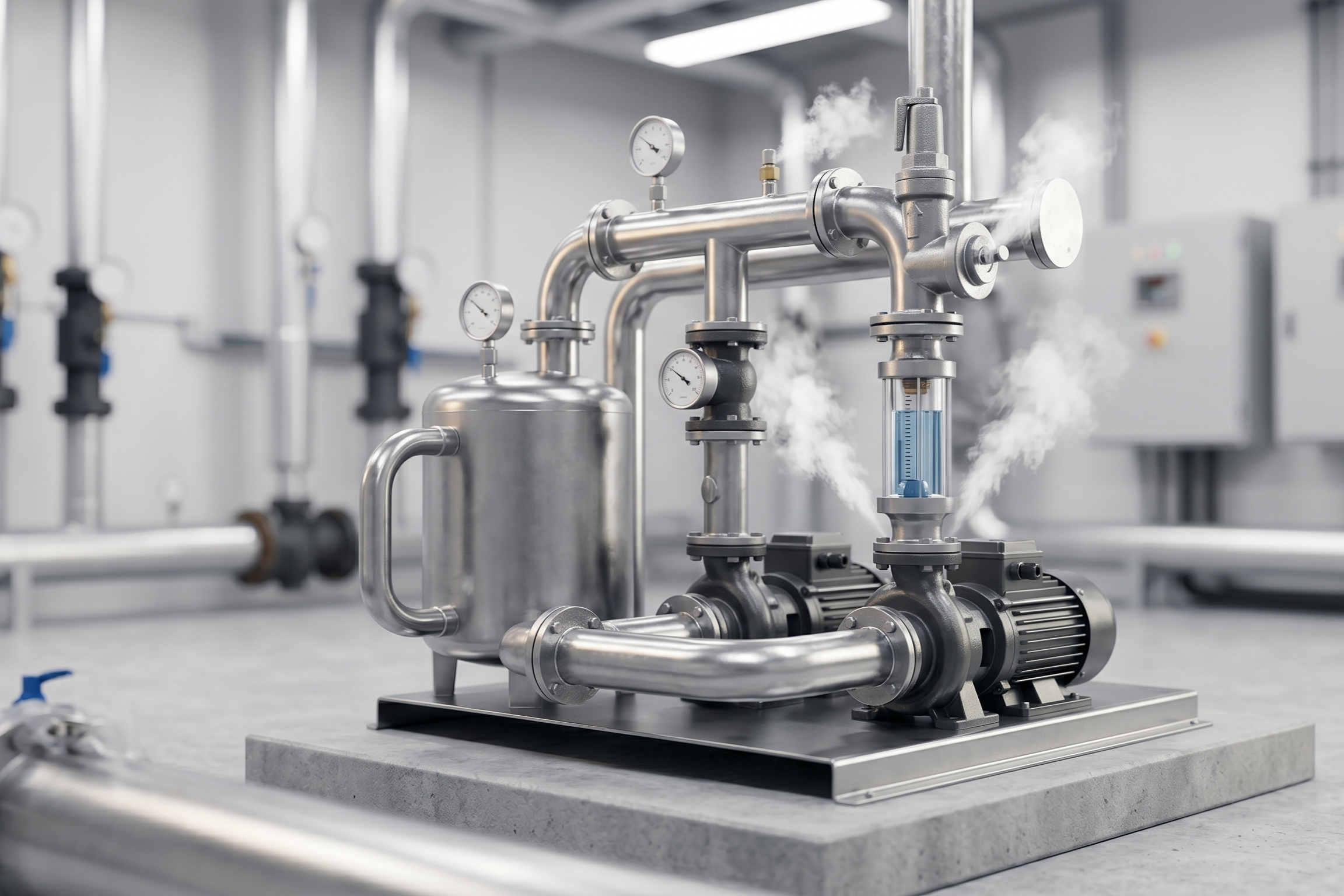

• Condensate recovery systems. Prefabricated stations with mechanical or electric pumps return hot condensate to the boiler; savings from recovering this hot condensate can be as much as 20% of fuel and chemical water treatment costs;

• Flash steam recovery. I install flash steam separators and other flash recovery units to recover available low-pressure steam from the condensate and utilize it for hot water or heating applications.

Monitoring and Digital Steam Solutions

We live in the data age, and steam control equipment is also becoming digital, where every failure is visible on a monitor screen. I use these tools to move from emergency repairs to predictive maintenance:

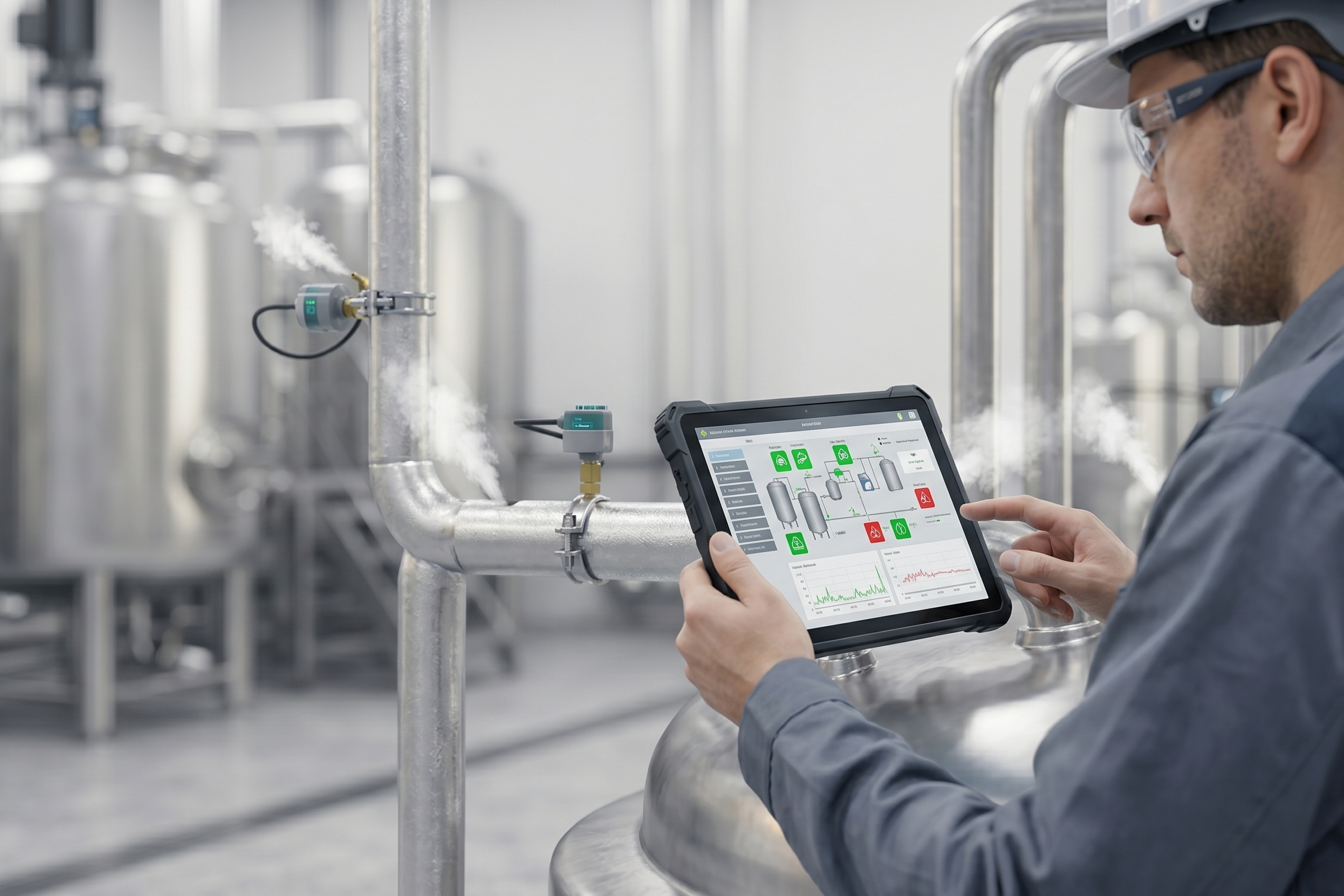

• Wireless steam trap monitoring. These acoustic sensors "listen" to the steam traps 24/7, allowing me to detect leaks early. Instead of waiting for a scheduled inspection, I'm notified of a leaky valve the minute it happens, eliminating steam loss and guaranteeing immediate ROI.

• Digital diagnostics and intelligent positioners. Smart positioners on control valves manage flow and conduct self-diagnostics, thereby helping to reduce downtime. The system alerts me early about seat or seal wear, allowing me to order parts and schedule repairs before the line is down mid-shift.

• IoT-based flow and energy monitoring. Cloud platforms collect data from all flow meters and temperature sensors to improve plant-wide efficiency. Real-time energy consumption visualization helps me identify hidden losses and optimize boiler operation, reducing unit costs.

Where Spirax Sarco Products Are Used

Over the years of field work, I've encountered this brand's equipment in virtually every industry that requires thermal energy. The versatility of Spirax Sarco applications lies in the fact that they offer specialized solutions tailored to the specific sanitary or technical standards of various industries.

• Food and beverage

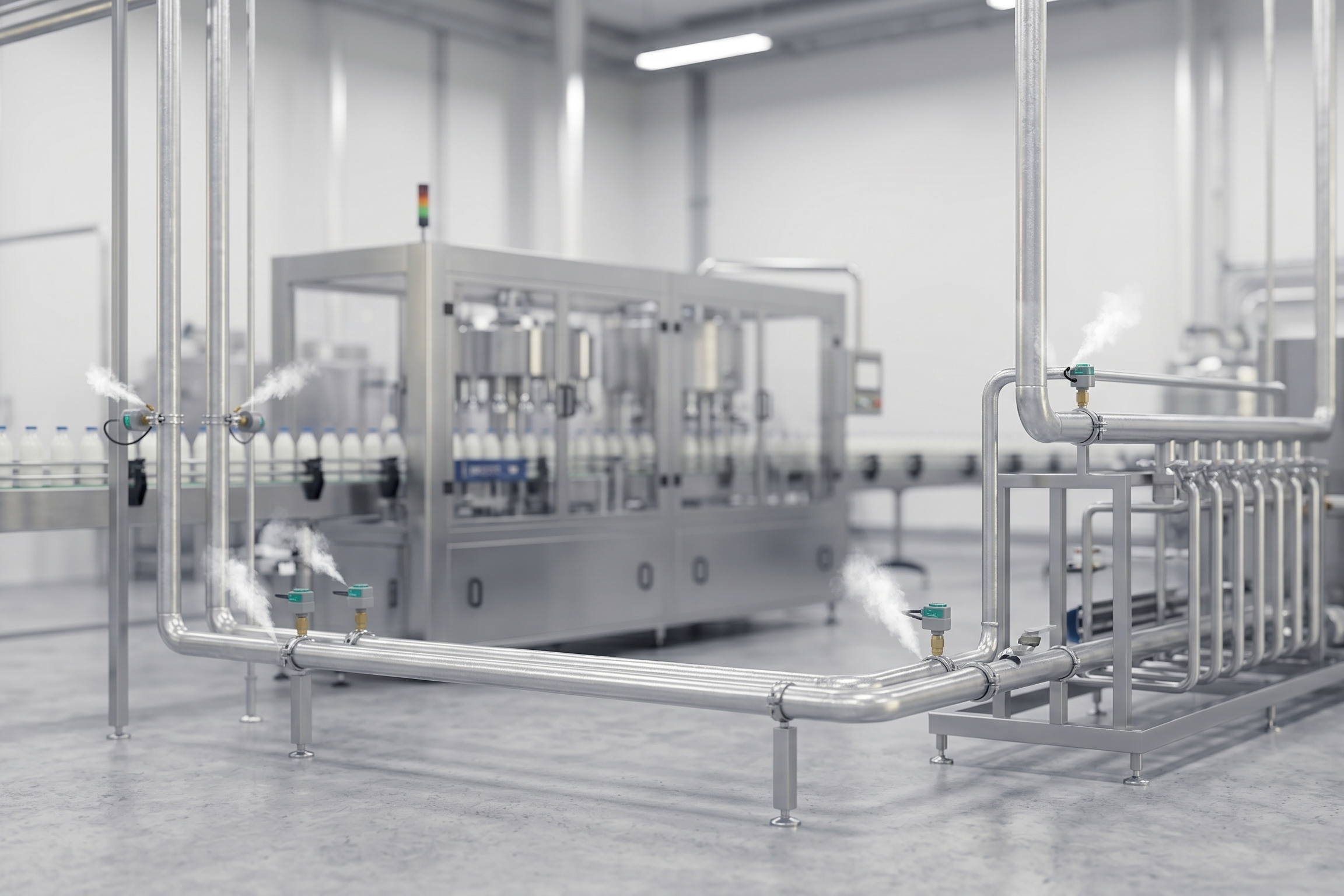

In the food industry, hygiene and speed of product processing are paramount. Here, I most often use pure steam systems to sterilize containers and filling lines. In cooking rooms and pasteurizers, Spirax float traps ensure instant condensate drainage, maximizing heating rates; this is critical for maintaining high line productivity and eliminating defects due to underheating.

• Pharmaceutical

For large pharmaceutical plants, we design ultra-clean systems based on 316L stainless steel components. In this industry, the slightest deviation can destroy a batch of expensive raw materials, so precise temperature control with Spirax valves is essential. This ensures stable heat transfer processes in reactors and that the sterility of the environment is not compromised by cavitation or condensate stagnation.

• Chemical industry

In chemical processes, equipment operates under extreme temperatures and aggressive vapors, requiring maximum material stability. I chose Spirax Sarco equipment in a special design for integration into reactor and distillation column heating systems. In such systems, steam must be supplied uninterruptedly 24/7, as any interruption due to a broken valve can lead to product solidification in the pipes.

• Power and energy

At large combined heat and power plants and distribution stations, steam moves at enormous speeds under high pressure. Here, Spirax equipment is used for turbine piping, main steam pipeline drainage, and feedwater treatment systems. The reliability and durability of each flange connection are paramount, as the cost of a leak at a power facility is a colossal loss in the efficiency of the entire plant.

How Spirax Sarco Improves Steam System Efficiency

Proper steam system optimization always begins with completely eliminating steam loss and maximizing energy recovery in the boiler. When I conduct a thorough audit and replace outdated disc traps with modern Spirax solutions, the client sees positive results in the form of figures in reports within the first month of operation:

• Lower fuel costs. High-quality valves minimize direct steam leaks through faulty components, meaning the boiler needs to burn less gas or coal to maintain the set pressure in the system;

• Improved heat transfer. Efficient and rapid condensate drainage, as well as automatic air bleed, significantly increase the heat transfer coefficient in your heat exchangers. This reduces cycle time;

• Сondensate reuse. Condensate collection systems allow you to return up to 80-90% of hot purified water to the boiler room. This will save on chemical treatment and make-up water and recover a huge amount of thermal energy that does not need to be spent on heating water from scratch;

• Stabilized process conditions. Precision control valves prevent water hammer and sudden pressure surges. This protects the product and significantly extends the service life of pipes, gaskets, and all shutoff valves.

Upgrading your boiler automation can significantly impact these savings. See our range of Spirax Sarco boiler controls and systems to optimize your generation cycle

Common Mistakes When Selecting Steam Equipment

Over the years, I've seen hundreds of selection errors, most of which arise from a desire to cut corners or a simple misunderstanding of steam thermodynamics. Mistakes in selecting steam control equipment are very costly and can turn a complex system into a source of ongoing problems:

• Wrong steam trap type. This is the most common mistake: attempting to install a cheap thermodynamic trap where the technology requires a float trap. As a result, the heat exchanger becomes flooded with condensate, heat transfer drops, and the system operates half-idle;

• Ignoring pressure conditions. Selecting equipment without taking into account the actual pressure drop and backpressure in the condensate line is a surefire way to block the system. If the pressure downstream of the trap is too high, it simply won't open, and the entire line will stall;

• Poor condensate management. Discharging hot condensate into the sewer instead of returning it to the deaerator is literally a waste of money. You're losing the purified water you paid for and a huge amount of gigacalories that could have been used to heat the boiler;

• Lack of monitoring. Without monitoring, you'll only become aware of a breakdown when steam starts gushing out of every crack, or the product starts to fail, making maintenance reactive rather than planned.

Step-by-Step: How I Choose Spirax Sarco Equipment

My personal algorithm for selecting industrial steam solutions always remains the same and is based on a strict process logic, not the diameter of existing pipes:

1. Define process. First, I clearly define the nature of the task: continuous heating, periodic sterilization, or simply tracing;

2. Check parameters. I collect real data, not specifications: the actual pressure at the installation point and the peak load in kg of steam per hour, taking into account start-up coefficients;

3. Select a steam trap. Based on the heat exchanger type, I choose the trap operating principle – mechanical for instantaneous discharge or thermostatic for using subcooled condensate;

4. Choose control valves. I select the control valve based on the flow rate, not the pipe size. Positioning accuracy is important to ensure the valve can smoothly maintain the set temperature without oscillation;

5. Evaluate condensate recovery. I decide how we will return energy to the boiler. If the pressure downstream of the trap is insufficient to overcome the rise in the pipe, I include a mechanical or electric pump in the design to pump hot condensate;

6. Add monitoring where needed. At the final stage, I identify critical components where failure would lead to plant shutdown. I add wireless monitoring sensors to these components to monitor the system's status in real time.

Real-World Examples

I've worked with dozens of cases where the implementation of Spirax Sarco steam solutions saved production from bankruptcy due to energy consumption. At one large dairy plant, we conducted a full audit and replaced 40 worn-out steam traps of various brands with Spirax units. The result was an immediate reduction in steam consumption by 8% and the elimination of noise in the workshop.

At a chemical plant, where temperature accuracy in the reactor was a matter of survival, we removed the old valves and installed a Spirax pressure-reducing station with pneumatic actuators. This allowed us to stabilize the temperature to within 0.5°C, instantly cutting the production defect rate in half and paying for the project within three months.

In the boiler room of a woodworking plant, condensate was simply drained into a tank, where it boiled and released energy into the atmosphere. We implemented a recovery system with a flash steam separator and a pumping station. As a result, the plant received “free” steam for the drying chambers, so we have reduced the overall costs of make-up and heating water by 12%.

When You Should Use Spirax Sarco Solutions

For those who check their boiler system in the mornings for new leaks, who see a white cloud of steam coming out of the drains, or if your boiler has reached maximum pressure, it’s time to take action. You can rely on Spirax Sarco products for the predictability, safety, and cost savings you seek. The premium materials used in their components will quickly pay for themselves because of the substantial decreases in your unexpected maintenance costs and the huge reductions in fuel expense.

FAQ

1. What does Spirax Sarco specialize in?
The company specializes in the design and manufacture of a full range of steam and thermal energy management equipment. Unlike individual component suppliers, they offer integrated engineering systems designed to maximize energy efficiency.

2. Why are steam traps important?
Steam traps are a barrier that automatically removes condensate and air, preventing live steam from escaping the system. Without them, heat exchangers flood with water, dramatically reducing heat transfer and causing dangerous water hammer in pipes.

3. How do Spirax Sarco products improve efficiency?
Equipment from this brand increases efficiency by minimizing direct steam loss and optimizing heat exchange processes within the system. Proper steam system optimization using these components eliminates the waste of resources on heating excess water and steam.

4. When should I upgrade steam equipment?
Modernization is worth considering if you notice signs of instability: frequent vibrations in pipes, steam leaking from drainage wells, or failure to maintain the set temperature. A sharp increase in gas or water bills is also a signal for an upgrade, which usually indicates widespread failure of old valves.

5. Are Spirax Sarco solutions worth the cost?
While the initial investment in premium equipment is higher, it pays for itself within the first 6-12 months through energy savings and reduced downtime. High-quality materials ensure a service life of 10-15 years, while cheaper alternatives require replacement every two years. In the long run, using reliable Spirax Sarco products is significantly cheaper due to minimal spare parts and maintenance costs.
