Baumer Capacitive Sensors

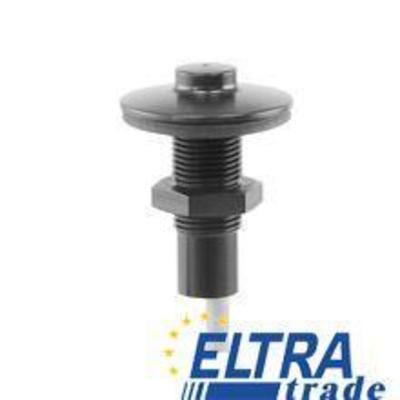

art. 11045948
| special type | liquid level sensor for wastewater |
| nominal sensing distance Sn | 0,1 mm |
| mounting type | non-flush |
| output circuit | NPN break function (NC) |
| operating temperature | 0 ... +50 °C |
art. 10119679
| nominal sensing distance Sn | 4 mm |
| nominal sensing distance Sn adjustable | 0,5 ... 4 mm |
| mounting type | flush |
| output circuit | NPN make function (NO) |
| operating temperature | -25 ... +75 °C |
art. 10119694
| nominal sensing distance Sn | 8 mm |
| nominal sensing distance Sn adjustable | 2 ... 8 mm |
| mounting type | flush |
| output circuit | PNP break function (NC) |
| operating temperature | -25 ... +75 °C |
art. 10119711
| nominal sensing distance Sn | 15 mm |
| nominal sensing distance Sn adjustable | 4 ... 15 mm |
| mounting type | flush |
| output circuit | NPN make function (NO) |
| operating temperature | -25 ... +75 °C |
art. 11076813
| nominal sensing distance Sn | 8 mm |
| mounting type | flush |
| GND electrode | no |
| operating temperature | -25 ... +75 °C |
art. 11050685
| nominal sensing distance Sn | 12 mm |
| mounting type | flush |
| GND electrode | no |
| operating temperature | -25 ... +75 °C |
art. 10119714
| nominal sensing distance Sn | 15 mm |
| nominal sensing distance Sn adjustable | 4 ... 15 mm |
| mounting type | flush |
| output circuit | NPN make function (NO) |
| operating temperature | -25 ... +75 °C |
art. 10119712
| nominal sensing distance Sn | 15 mm |
| nominal sensing distance Sn adjustable | 4 ... 15 mm |
| mounting type | flush |
| output circuit | PNP break function (NC) |
| operating temperature | -25 ... +75 °C |
art. 10112672
| nominal sensing distance Sn | 5 mm |
| mounting type | flush |
| GND electrode | yes |
| output circuit | PNP make function (NO) |
| operating temperature | -25 ... +75 °C |
art. 10119700
| nominal sensing distance Sn | 5 mm |
| mounting type | flush |
| GND electrode | yes |
| output circuit | PNP break function (NC) |
| operating temperature | -25 ... +75 °C |
art. 11004520
| special type | sensor for high temperatures |
| nominal sensing distance Sn | 15 mm |
| nominal sensing distance Sn adjustable | 4 ... 15 mm |
| output circuit | PNP break function (NC) |
| operating temperature | -40 ... +200 °C |
art. 10119685
| nominal sensing distance Sn | 8 mm |
| nominal sensing distance Sn adjustable | 2 ... 8 mm |
| mounting type | flush |
| output circuit | NPN make function (NO) |
| operating temperature | -25 ... +75 °C |
| Ripple immunity | 3 Vms |
| Power-up time | ≤ 10 s |
| Power supply | 8 … 35 V DC |
art. 10127191
| special type | sensor for high temperatures |
| nominal sensing distance Sn | 15 mm |
| nominal sensing distance Sn adjustable | 4 ... 15 mm |
| output circuit | PNP make function (NO) |
| operating temperature | -40 ... +200 °C |
art. 10164642
| nominal sensing distance Sn | 0,5 mm |
| mounting type | non-flush |
| GND electrode | no |
| output circuit | NPN make function (NO) |
| operating temperature | 0 ... +70 °C |
art. 11039126
| special type | liquid level sensor for wastewater |
| nominal sensing distance Sn | 0,1 mm |
| mounting type | non-flush |
| output circuit | NPN make function (NO) |
| operating temperature | 0 ... +50 °C |
art. 10129050
| nominal sensing distance Sn | 0,5 mm |
| mounting type | non-flush |
| GND electrode | no |
| output circuit | PNP make function (NO) |
| operating temperature | 0 ... +70 °C |
art. 11017111
| special type | liquid level sensor for wastewater |
| nominal sensing distance Sn | 0,1 mm |
| mounting type | non-flush |
| output circuit | PNP make function (NO) |
| operating temperature | 0 ... +50 °C |
art. 10164795
| nominal sensing distance Sn | 0,5 mm |
| mounting type | non-flush |
| GND electrode | no |
| output circuit | PNP break function (NC) |
| operating temperature | 0 ... +70 °C |
| nominal sensing distance Sn | 5 mm |
| mounting type | non-flush |
| GND electrode | no |
| output circuit | NPN make function (NO) |
| operating temperature | -25 ... +75 °C |
art. 11001668
| nominal sensing distance Sn | 15 mm |
| nominal sensing distance Sn adjustable | 2 ... 15 mm |
| mounting type | non-flush |
| output circuit | NPN make function (NO) |
| operating temperature | -25 ... +75 °C |
art. 11001669
| nominal sensing distance Sn | 15 mm |
| nominal sensing distance Sn adjustable | 2 ... 15 mm |
| mounting type | non-flush |
| output circuit | NPN break function (NC) |
| operating temperature | -25 ... +75 °C |
art. 11001670
| nominal sensing distance Sn | 15 mm |
| nominal sensing distance Sn adjustable | 2 ... 15 mm |
| mounting type | non-flush |
| output circuit | PNP make function (NO) |
| operating temperature | -25 ... +75 °C |
| nominal sensing distance Sn | 5 mm |
| mounting type | non-flush |
| GND electrode | no |
| output circuit | PNP break function (NC) |
| operating temperature | -25 ... +75 °C |
art. 11001671
| nominal sensing distance Sn | 15 mm |
| nominal sensing distance Sn adjustable | 2 ... 15 mm |
| mounting type | non-flush |
| output circuit | PNP break function (NC) |
| operating temperature | -25 ... +75 °C |
art. 11149600
| special type | liquid level sensor for oil |
| mounting type | non-flush |
| version | adhesion resistant |
| output circuit | voltage output |
| operating temperature | -40 ... +85 °C |
art. 11001683
| nominal sensing distance Sn | 8 mm |
| mounting type | non-flush |
| GND electrode | no |
| output circuit | NPN make function (NO) |
| operating temperature | -25 ... +75 °C |
art. 11001676
| nominal sensing distance Sn | 30 mm |
| nominal sensing distance Sn adjustable | 5 ... 30 mm |
| mounting type | non-flush |
| output circuit | PNP make function (NO) |
| operating temperature | -25 ... +75 °C |
art. 10119682
| nominal sensing distance Sn | 4 mm |
| nominal sensing distance Sn adjustable | 0,5 ... 4 mm |
| mounting type | flush |
| output circuit | NPN break function (NC) |
| operating temperature | -25 ... +75 °C |
art. 10236345
| nominal sensing distance Sn | 4 mm |
| nominal sensing distance Sn adjustable | 0,5 ... 4 mm |
| mounting type | flush |
| output circuit | PNP make function (NO) |
| operating temperature | -25 ... +75 °C |
Baumer capacitive sensors are transducers that convert non-electrical quantities to electrical capacitance values.
They are used to measure fluid, pressure, humidity, mechanical stress, etc. Their operation principle is similar to open electric capacitor.
The main advantages of capacitive sensors:
- Contactless
- They are available to work with any materials
- High durability level
The sensors work at distance up to 30 mm. Its operating range is determined by EN 60947-5-2. Such equipment works optimally with aggressive environments due to non-contact technology. The quality of work does not depend on the color, material and other physical characteristics of an object.
Devices work with both conductive (electrical conductivity> 20 μS / cm.) and non-conductive (<20 μS / cm) medias. They also normally operate with optically reflecting surfaces.
The company produces capacitive sensors of the following main types:
- With metal housing
- With plastic housing
- With flat design
In addition to various materials, the products are available in cylindrical, rectangular and proximity designs. Models of this series have the following protection class variants: IP65, IP67, IP 68, and IP69K.
Capacitive sensors by Baumer are universal units that work with any kind of environment. They are very robust, long-life and don`t exposed to significant damage from aggressive environments, due to the non-contact principle of action.
More detailed information you can see here:
- Baumer capacitive level proximity sensors and switches pdf (EN)
- Сapteurs capacitifs et détecteurs baumer pdf (français) (FR)
- Baumer kapazitive sensoren und näherungsschalter katalog pdf (DE)
