GT 5 Tachogenerators
- Blind hollow shaft ø8...12 mm
- Low response time
- Open circuit voltage 7...10 mV per rpm
- Blind hollow shaft ø8...12 mm
- High signal quality due to patented LongLife technology
- No auxiliary energy source required
art. 11042579
Baumer tachogenerator with high response speed, open circuit voltage 20...60mV per rpm and connector output.
shaft 16 mm
- Ex-approved by ATEX II 2 G Ex db eb IIC T6 Gb
- Low response time
- Open circuit voltage 20…150 mV per rpm
- Solid shaft ø11 mm
- EURO flange B10
GMP 1,0 Tachogenerators
- Solid shaft ø11 to ø14 mm with flange
- Low response time
- Open circuit voltage 40...175 mV per rpm
- Redundant output (GMPZ)
GMPZ 1,0
- Low response time
- Open circuit voltage 40...175 mV per rpm
- Redundant output (GMPZ)
| Reversal tolerance | ≤0.1 % |
| Linearity tolerance | ≤0.15 % |
| Temperature coefficient | ±0.05 %/K (open-circuit) |
| Operating temperature | -30...+130 °C |
| Reversal tolerance | ≤0.1 % |
| Linearity tolerance | ≤0.15 % |
| Temperature coefficient | ±0.05 %/K (open-circuit) |
| Operating temperature | -30...+130 °C |
GT 9 is a high-precision tachogenerator
- Open circuit voltage 10...20 mV per rpm
- Blind hollow shaft ø12...16 mm or cone shaft ø17 mm (1:10)
- High signal quality due to patented LongLife technology
- No auxiliary energy source required
art. 11002434
| Reversal tolerance | ≤0.1 % |
| Linearity tolerance | ≤0.15 % |
| Temperature coefficient | ±0.05 %/K (open-circuit) |
| Operating temperature | -30...+130 °C |
GTB 9.16
- High protection IP 68
- Connector output
- No auxiliary energy source required
Tachogenerators GTF 7.08
- High signal quality due to patented LongLife technology
- Temperature compensation of tacho voltage as standard
- Low moment of inertia
- No auxiliary energy source required
GTF 7.16 DC tachogenerator
- Solid shaft ø11 mm with EURO flange B10, housing ø115 mm
- Open circuit voltage 60 V per 1000 rpm
- Temperature compensated
- EURO flange B10
| Reversal tolerance | ≤0.1 % |
| Linearity tolerance | ≤0.15 % |
| Temperature coefficient | ±0.05 %/K (open-circuit), optional: 0.005 %/K |
| Operating temperature | -30...+130 °C |
- Test voltage: Wire/conductor: 1500 V ef, Wire/shield: 750 V ef
- Protection: Common low-capacitance shield, shielded paired signal wires
- Weight: Approximately 110 g/m
Spring disk coupling K35 WD
- Permissible axial movement: ± 0.7 mm (±0.3 mm in the version with an insulated sleeve)
- Permissible parallel displacement: ± 0.2 mm (±0.05 mm in the version with an insulated sleeve)
- Permissible angular error: ± 1°
- Electrical isolation: Yes
- Weight: about 50 g
- Material of spring disks: X12 CrNi 17 7
Spring disk coupling K50 WD
- Permissible angular error: ± 1°
- Electrical isolation: No
- Weight: about 95 g
- Material of spring disks: X12 CrNi 17 71
Spring disk coupling K60 WD
- Permissible angular error: ± 1°
- Electrical isolation: No
- Weight: approximately 165 g
- Material of spring disks: X12 CrNi 17 7
art. 10124973
| Digit height | 7 mm |
| Number of digits | 5-digits |
| Operating temperature | 0...+60 °C |
art. 11033327
- Circumference: 50 cm / 0.5 m
- Hole: 7mm
- Outer Diameter: 159.15 ± 0.2 mm
- Cover profile: rubber handle with rubber crumb
RTD 1 B14 Y 1 Resolver
- Solid shaft ø6 mm with synchro flange
- Robust resolver with solid shaft ø6 mm
- Rotation speed max. 10000 rpm
- Centering alignment ø50 mm
- Mounting hole circle ø68 mm
- Wide operating temperature range
RTD 4 A 4 Y 2 Resolvers
- Blind hollow shaft ø10 to ø16 mm
- Robust resolver with blind hollow shaft ø10...16 mm
- Rotation speed max. 8000 rpm
- Very high resistance to shock and vibrations
Tachogenerators
- Solid shaft ø6 mm with flange
- Open circuit voltage 10...60 mV per rpm
- Solid shaft ø6 mm with flange
- Very high resistance to shock
| Reversal tolerance | ≤0.1 % |
| Linearity tolerance | ≤0.15 % |
| Temperature coefficient | ±0.05 %/K (open-circuit) |
| Operating temperature | -30...+130 °C |
TachogeneratorsTDP 13
TachogeneratorsTDP 13
art. 11070901

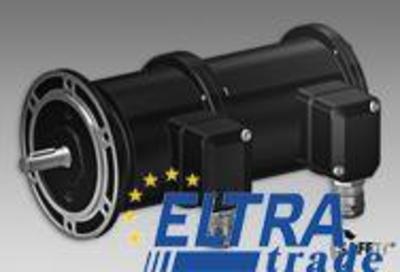

TDP0.2 LT-4 B10 55 tachogenerator
- Rotor moment of inertia: 1.1 kgcm²
- Permissible load on the shaft: ≤60 N (axial), ≤80 N (radial)
- Housing material: Die-cast aluminum
- Shaft material: Stainless steel
- Operating temperature: -30...+130 °C
- Protection: IP 55.
| Reversal tolerance | ≤0.1 % |
| Linearity tolerance | ≤0.15 % |
| Temperature coefficient | ±0.05 %/K (open-circuit) |
| Operating temperature | -30...+130 °C |
Tachogenerators Baumer are an electric devices that measure the shaft rotation frequency and convert it into an electrical signal.
The German company produces several categories of such equipment. All series are products that can operate in heavy duty conditions.
The devices use Longlife technology, which consists of a silver track integrated in the commutator. This feature allows equipment almost completely to avoid wear. The technology significantly increases the life of the device and its reliability in harsh environments. Special seals are located in both sides of sensor`s body.
The company Baumer hubner produces the following types of tachogenerators:
- Solid shaft
- Bearingless
- Hollow shaft
Solid shaft devices are connected to measuring objects using a shaft of diameters from 11 to 18 mm (depending on model) and EURO flange B10. Such equipment work with temperatures up to 130 °C (266 °F) and with idle voltage up to 200mV / rpm.
Bearingless tachogenerators have a blind hollow or conical shaft with dimensions from 7 to 17 mm. They are able to operate with idle voltage up to 60mV / rpm (depending on model). Sensors can work with speeds up to 10000 rpm without losing high level of accuracy.
Models with a blind hollow shaft ø14 -16 mm are also available. They work with idle voltage up to 60mV / rpm. This type includes the KTD 3 and KTD 4 series.
Baumer hubner also produces 3 main series of resolvers: RTD 1 B14 Y 1, RTD 1 B14 Y 3 and RTD 4 A 4 Y 2. They available with both solid and hollow shaft.
More detailed information you can see here:
