IFM ASI controllers

ControllerE 1Mstr DP RS232

ControllerE 2Mstr DP RS232

ControllerE M4 1Master DN

ControllerE M4 2Master DN

AS-i DeviceNet controller E, Housing for DIN rail mounting, AS-i controller, with DeviceNet interface, Full master functions, Graphic display, Full master functions, Graphic display

AS-i DeviceNet controller E, Housing for DIN rail mounting, AS-i controller, with DeviceNet interface, Full master functions, Graphic display, Full master functions, Graphic display

AS-i Ethernet / IP Controller E, Housing for DIN rail mounting, Full master functions, Graphic display, Full master functions, Graphic display

AS-i CANopen Controller E, Housing for DIN rail mounting, AS-i controller, with CANopen interface, Full master functions, Graphic display, Full master functions, Graphic display

AS-i Ethernet / IP Controller E, Housing for DIN rail mounting, Full master functions, Graphic display, Full master functions, Graphic display

AS-i controller E, Housing for DIN rail mounting, AS-i controller, freely programmable, Profibus DP interface, Ethernet programming interface, Full master functions, Graphic display, Full master functions, Graphic display

AS-i controller E, Housing for DIN rail mounting, AS-i controller, freely programmable, Full master functions, Graphic display, Ethernet programming interface, Full master functions, Graphic display

AS-i controller E, Housing for DIN rail mounting, AS-i controller, freely programmable, Full master functions, Graphic display, Ethernet programming interface, Full master functions, Graphic display

AS-i DP controller E, Housing for DIN rail mounting, AS-i PLC with Profibus-DP interface, Full master functions, Graphic display, Full master functions, Graphic display

AS-i DP controller E, Housing for DIN rail mounting, AS-i PLC with Profibus-DP interface, Full master functions, Graphic display, Full master functions, Graphic display

AS-i EtherCAT / controller E, Housing for DIN rail mounting, Full master functions, Graphic display, Full master functions, Graphic display

AS-i EtherCAT / controller E, Housing for DIN rail mounting, Full master functions, Graphic display, Full master functions, Graphic display

AS-i Profinet gateway, Housing for DIN rail mounting, AS-i master, Ethernet configuration interface with dynamic web interface for configuration and diagnosis including remote maintenance, Profinet RT device class B, LCD colour display, Device supply either via 24 V or AS-i (AS-i bus 1)

SmartPLC DataLine 2ASi PN

PROFIBUS DP AS-Interface Gateway

AS-i Profibus gateway 2Master PB

AS-i EtherNet/IP gateway, Housing for DIN rail mounting, AS-i master, Ethernet configuration interface with dynamic web interface for configuration and diagnosis including remote maintenance, LCD colour display, Device supply either via 24 V or AS-i (AS-i bus 1)

SmartPLC DataLine 2ASi EIP

SmartPLC DataLine 1ASi ECAT

SmartPLC DataLine 2ASi ECAT

Contr 2MSTR 1RS232C 1DP

ControllerE 2Mstr 1RS232C
ControllerE 1Mstr DP RS232
ControllerE 2Mstr DP RS232
ControllerE 2Master DN RS232
ASI DP GATEWAY 1 MASTER

AS-Interface controllers / gateways from IFM Electronic implicate:

-Support of the AS-i standard 2.1 for extended functionality.
-Powerful controllers with easy-to-use graphic display.
-”Safety at Work” for safety-related applications.
-Wide range of modules for control cabinets and field applications.
-Intelligent system solutions for special tasks.

The actuator-sensor interface (AS-i) sets new technological standards in the design and automation of installations. This leads to economic advantages for the OEM and the user for project management, commissioning and maintenance of machines. In contrast to conventional fieldbuses AS-i has a finely granulated structure and can therefore be integrated even into proximity sensors. AS-i considerably reduces wiring complexity since conventional parallel wiring of each sensor or actuator to the controller is no longer necessary. This saves the user a great number of terminals, splitter boxes, input/output cards and cable lines.

Via its field connections AS-i allows low-cost connection of conventional devices. Up to 248 binary sensors and 186 actuators can be connected per AS-i line. It is also possible to integrate sensors with bus capability into the system at any time. These sensors with integrated AS-interface supply more information to the controller without the need of additional wiring. Therefore this latest sensor generation is also referred to as intelligent sensors.

Voltage supply and data communication of all sensors are normally performed via a (yellow) AS-i cable. For some modules actuators can also be supplied via this cable. If a higher output current or emergency stop switch-off is required, actuators are supplied via a second black flat cable with a separate 24 V auxiliary voltage.

AS-interface has established itself at the lowest automation level, it is locat-ed below the fieldbuses. The strengths of AS-i are its simple structure, speed, quick wiring and price/performance ratio. It can be used as a feeder bus for higher bus systems, they in turn then ensure a non time critical transmission of the data over longer distances to the host controller.

Models of the "pure" gateway with a very good price/performance ratio: AC1433, AC1376, AC1401, AC1375, AC1421, AC1401, AC1411, AC1412, etc. Consequently cost-optimised without losing the proven benefits of the controller e family, such as robust metal housing and operation / diagnosis via the backlit display.

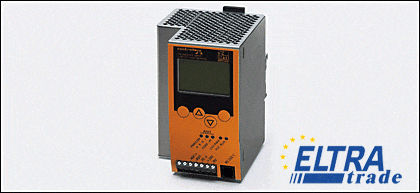

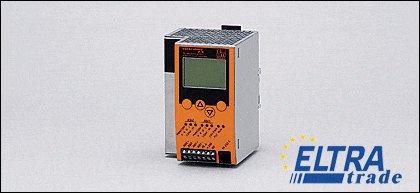

The controller e family, the flagship of the intelligent AS-i gateways, excels due to its integrated plc for quick signal processing and relief of higher-level controllers: AC1358, AC1357, AC1334, AC1356, AC1355, AC1391, AC1333, etc. Connection to all common fieldbusses and easy configuration facilitate setup. The integrated operating display and the robust metal housing are more reasons for positive customer feedback.
