Pilz PNOZmulti Small Controllers
PNOZ mml1p
- Vibration resistance: according to DIN EN 60068-2-6
- Impact resistance: according to DIN EN 60068-2-7
- Degree of protection: IP67
2 channels for speed sensors
Maximum switching frequency: 20 kHz
Reaction time: ≤ 50 ms
Supply voltage: 24 V DC
Module response time: < 50 ms
Safe exit reaction time: < 100 ms
Communication module
- Supply voltage: 24 V DC
- Current consumption: 50 mA
- Output current: 2 A
- Reaction time: < 20 ms
- Synchronization range: 0.5 ms...10 ms
Sensor Box
- Vibration resistance: up to 10 g at 20-2000 Hz
- Impact resistance: up to 50 g
- Electromagnetic resistance: EN 61000-6-2, EN 61000-6-3
PNOZ m ES EtherNet/IP
- Operating temperature: from -20°C to +55°C
- Storage temperature: from -25°C to +70°C
- Protection class: IP67
4DI4DOR Sensor Box
- Operating frequency range: 20 Hz - 2 kHz
- Electromagnetic resistance: EN 61000-6-2, EN 61000-6-3
- Resistance to mechanical vibrations: EN 60068-2-6
- Impact resistance: EN 60068-2-7
- Mounting: 35 mm DIN rail
Input resistance: 2 kΩ
Rise/fall time: < 1ms
Overvoltage: up to 30 V
Reverse current protection: up to 2 A
PNOZ m ES 14DO
- Supply voltage: 24 V DC
- Maximum current per channel: 2 A
PNOZ ml2p safe link PDP
- Reaction time: max. 5 ms
- Response time: max. 20 ms
- Vibration resistance: according to DIN EN 60068-2-6
- Impact resistance: according to DIN EN 60068-2-7
PNOZ mc1p
- Operating temperature range: from -20°C to +55°C
- Vibration resistance: according to DIN EN 60068-2-6
- Impact resistance: according to DIN EN 60068-2-7
- Electromagnetic immunity: according to DIN EN 60068-2-5
PNOZ ms1p standstill / speed monitor
- Input type: 1-channel, incremental encoder
- Speed measurement range: 0.01 - 2000 rpm
- Idle time measurement range: 0.1 - 20 s
PNOZ m ES EtherCAT
- Power supply range: 24 V DC
- Current consumption: Max. 1.2 A
- Reaction time: ≤ 50 ms

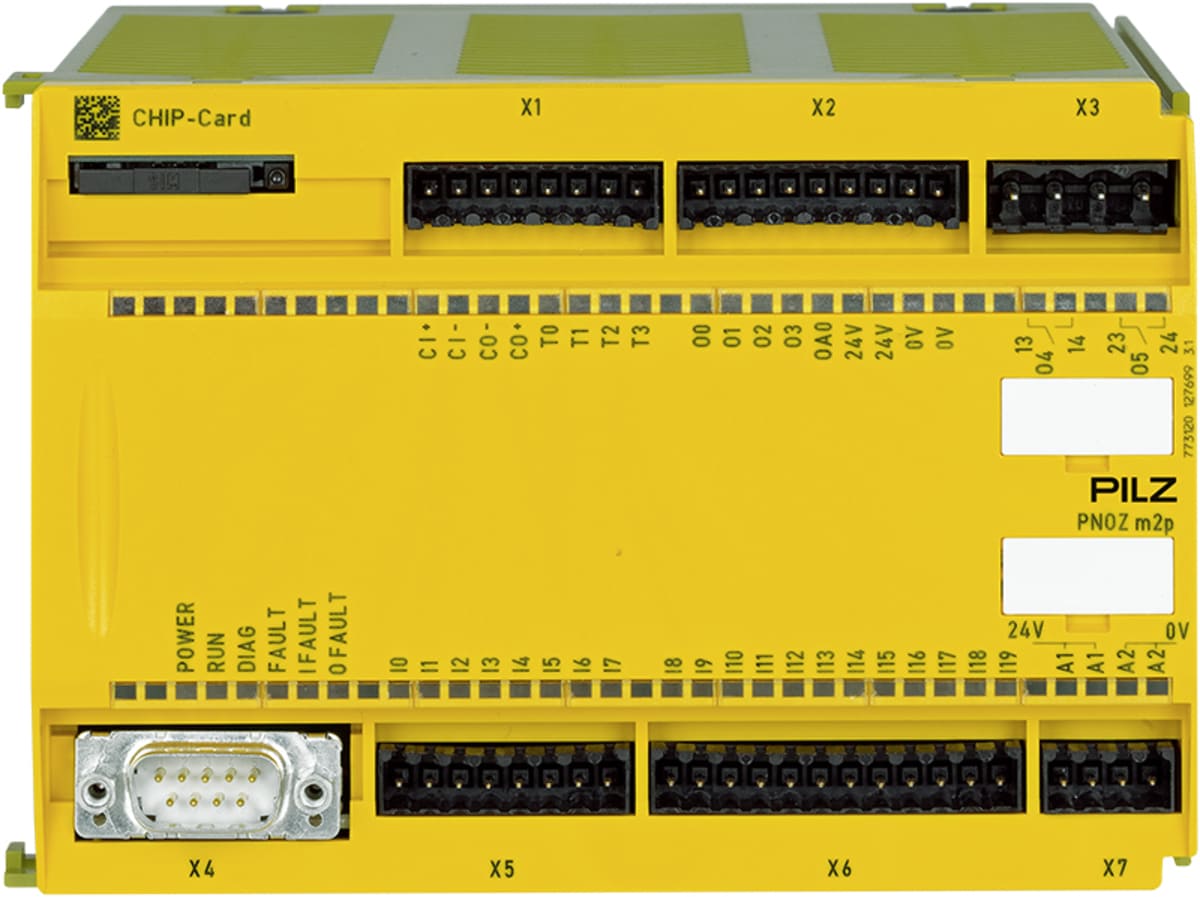

PNOZ m2p base unit press function
- Operating temperature range: from -20°C to +55°C
- Degree of protection: IP67
- Installation: on a DIN rail
PNOZ mm0p 24VDC (772000)
PNOZ mm0.1p (772001)
PNOZ mm0.2p (772002)
PNOZ mm0p-T (772010)
PNOZ m B0 (772100)
PNOZ m B1 (772101)
PNOZ m EF Multi Link (772120)
PNOZ m ES ETH (772130)
PNOZ m ES CC-Link (772135)
PNOZ m ES Profinet (772138)
PNOZ m EF 16DI (772140)
PNOZ m EF 8DI4DO (772142)
PNOZ m EF 1MM (772170)
PNOZ m EF 2MM (772171)
PNOZ m1p base unit (773100)
PNOZ m1p ETH (773103)
