Hohner Encoder Solid Shaft encoder

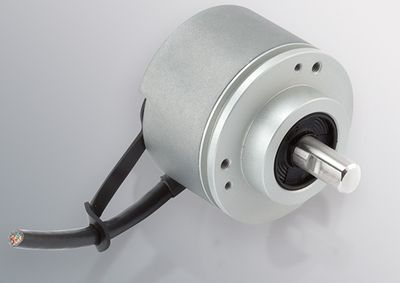

Hohner SERIE PR90

Programmable incremental encoder with the ability to configure from 1 to 65536 pulses per revolution. Housing diameter 58 mm, shaft Ш 6 or 10 mm. Protection class IP65. Connection via cable or industrial connector M12/M23.

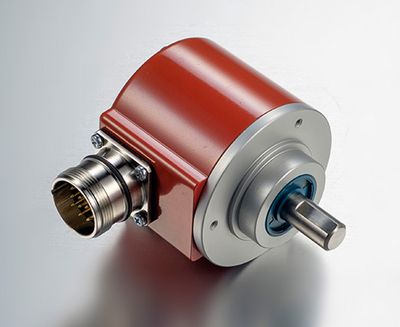

Hohner SERIE 10

Incremental encoder with solid shaft, resolution up to 50,000 pulses per revolution. diameter 58 mm, shaft 6 .. 12 mm. Protection rating IP67. Connection via cable or industrial connector.

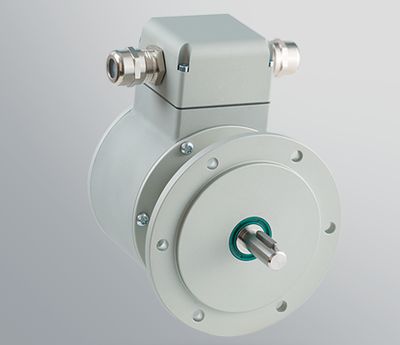

Hohner SERIE 100/DUO

Heavy-duty incremental encoder with dual output. 5000 PPR. Housing 100 mm, shaft Ш 11 mm. Integrated bearing insulation up to 2.5 kV. IP66 protection. Connection via 360° rotatable spring-clamp terminal box.

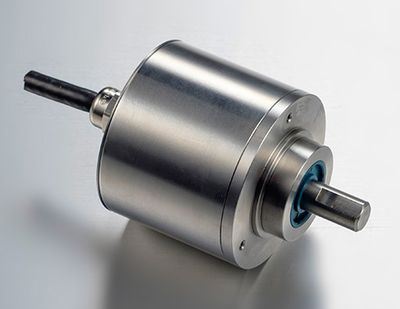

Hohner SERIE 10I

Incremental encoder with solid shaft, made of stainless steel AISI304. 50,000 ppr resolution. Protection class IP67. Suitable for heavy industrial applications.

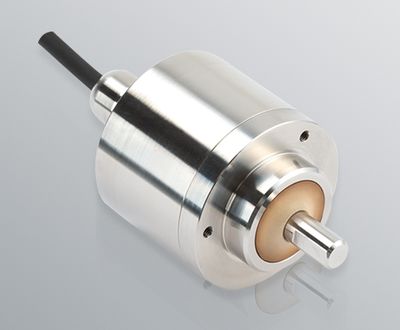

Hohner SERIE 10K

High-precision incremental encoder with solid shaft, specially developed for the food industry. Resolution up to 50,000 pulses. Housing 58 mm / shaft diam 10 mm. Protection class IP69K. Certified by ECOLAB and meets EHEDG criteria.

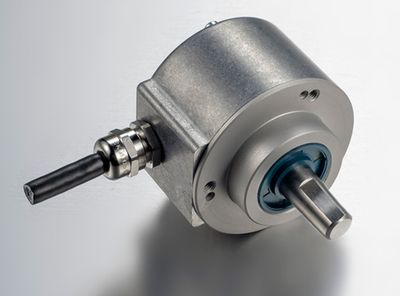

Hohner SERIE 11

Incremental encoder with solid shaft, cost optimized for industrial applications. Resolution up to 5000 pulses per revolution. Housing diameter 58 mm, shaft Ш 10 mm. Protection class IP65.

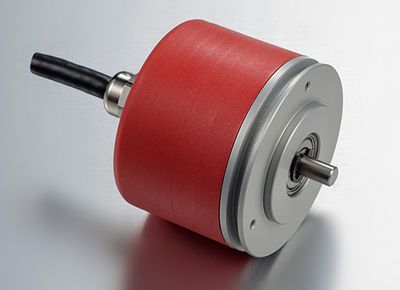

Hohner SERIE 20

Incremental encoder with solid shaft. Resolution up to 1000 ppr. IP54. Housing diameter 58 mm, shaft Ш 6 mm. Various flanges available.

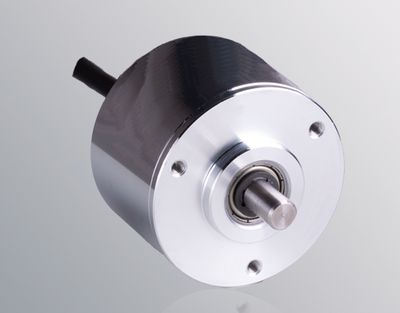

Hohner SERIE 21

Incremental encoder with solid shaft. shaft Ш 6 mm, 500 ppr. Housing 40 mm. Protection IP41.

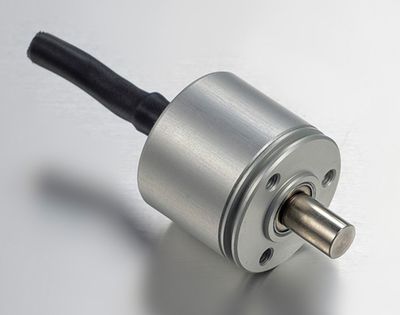

Hohner SERIE 26

Miniature incremental encoder with solid shaft for industrial applications. Resolution up to 4096. Housing diameter 24 mm, shaft Ш 4 or 6 mm. Protection class IP64.

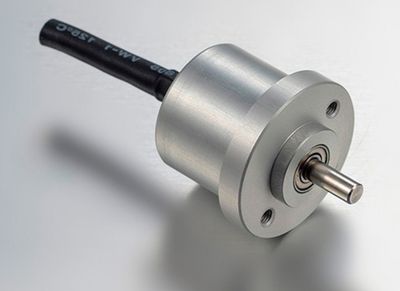

Hohner SERIE 27

Miniature incremental encoder with solid shaft. Resolution up to 4096 ppr. Housing diameter 24 mm, mounting flange 30 mm, shaft Ш 4 or 6 mm. Protection class IP64.

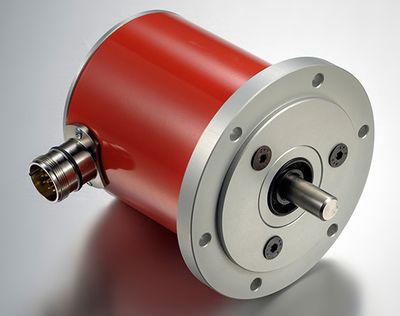

Hohner SERIE 30

High-precision incremental encoder with solid shaft for heavy industrial applications with 50,000 ppr resolution. Housing diam. 90 mm and shaft diam. 12 mm. Protection class IP67. Various mechanical, electronic and optical versions available.

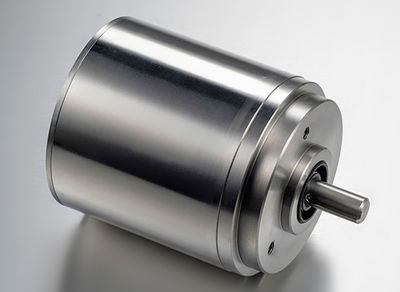

Hohner SERIE 30I

High-precision incremental encoder with solid shaft for heavy industrial applications. 50,000 ppr, 90 mm diam/ housing, shaft Ш 12 mm. Protection class IP67. Various mechanical, electronic and optical versions available.

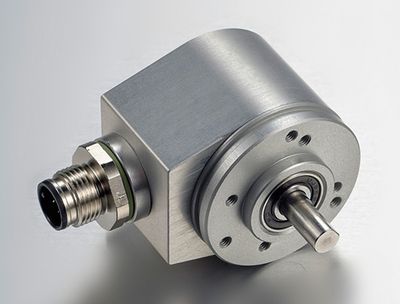

Hohner SERIE 36

Miniature incremental encoder with solid shaft. Resolution up to 10,000. Diameter: 36.5 mm housing, 6 mm shaft. Protection IP65. Various mechanical, electronic and optical versions are available.

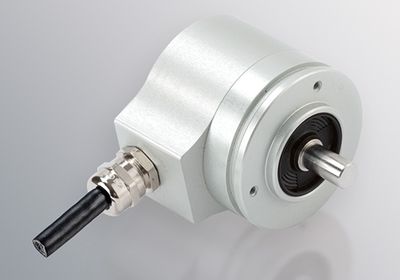

Hohner SERIE 50

Solid shaft compact incremental encoder. Resol. up to 5000 pulses per revolution. Housing Ш 50 mm, shaft 6, 8 or 10 mm diam. Protection class IP65. Connection via cable or industrial connector M12/M23.

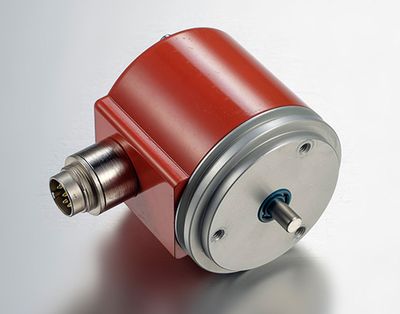

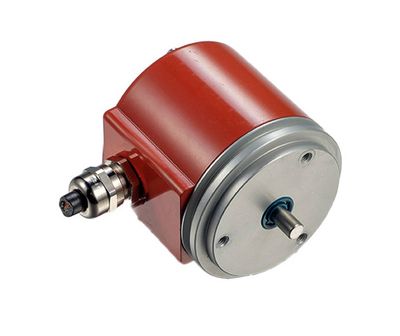

Hohner SERIE 58

High-precision incremental encoder with solid shaft for standard applications. IP67, 50,000 ppr, 58 mm housing, 6 mm shaft. Mounting via synchro flange. Connection: cable and industrial connector M12/M23.

Hohner SERIE SERIE 58 Sin/Cos

Solid shaft encoder for industrial applications. Resolution 1024, 2048 and 2500 pulses per revolution. Housing Ш 58 mm, shaft Ш 6 mm. Mounting via synchro flange. IP65 protect. Cable or industrial connector M12/M23.

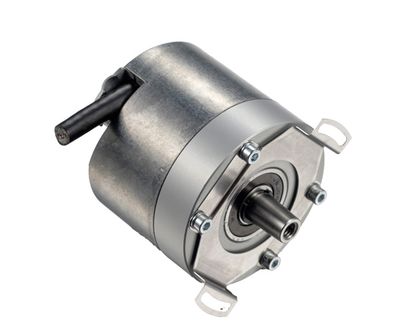

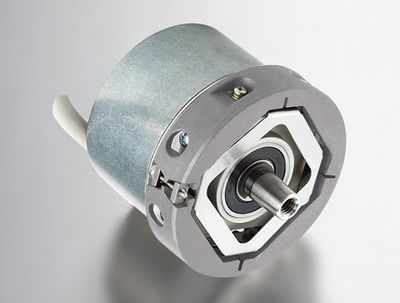

Hohner SERIE 64

CONIC SHAFT INCREMENTAL ENCODER FOR INDUSTRIAL APPLICATIONS, 10.000 PPR

Hohner SERIE 64 Sin/Cos

CONIC SHAFT INCREMENTAL ENCODER wit diam.58 mm. Resolution 2.048 pulses per turn, Conic shaft 1:10

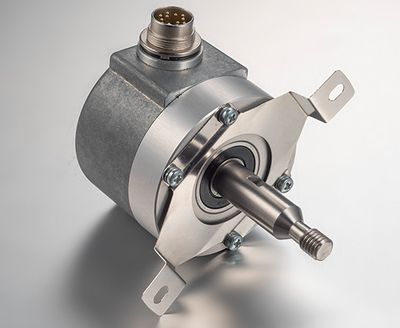

Hohner SERIE 66

THREAD SHAFT INCREMENTAL ENCODER FOR INDUSTRIAL APPLICATIONS with up to 10.000 ppr and housing 58 mm

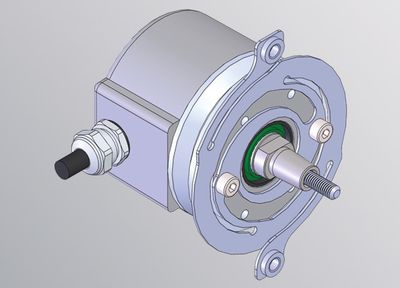

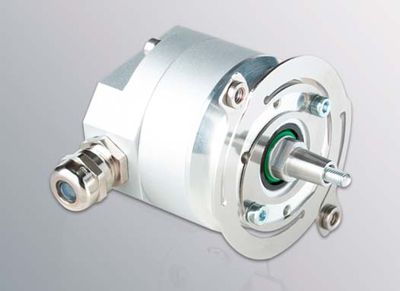

Hohner Serie 67

Solid shaft encoder with resolution 1.024 ppr and housing 58 mm.

Hohner Series 67 Sin/Cos

Incremental encoder with resolution 1024 SIN/COS per turn and external diameter 58 mm
