Univer Pneumatic Cylinders
Cylinder accessory ref. UNIVER
IN STOCK!!!
Rotating cylinder
- Pressure: 1,5…10 bar
- Temperature: -20…+80 °C
- Bore diam.: 32mm
univer am 5109
- Dissipation losses: 0.35 W
- Insulation resistance: > 100 MΩ
- Vibration resistance: 10 G at 50-2000 Hz
- Resistance to shocks: 50 G
univer am 5111
- Compatibility: Compatible with other Univer Group AM series connectors and compatible with some connectors from other manufacturers.
- Certifications: CE, UL and CSA.
univer am 5112
- Vibration resistance: 10 G (10 Hz to 2 kHz)
- Resistance to shocks: 50 G (0.5 ms)
univer am 5400
- Ambient temperature: -20°C to +80°C
- Liquid viscosity: Up to 30 cSt
- Protection class: IP65
- Seal material: EPDM
- Standard: ISO 2281
Pneumatic accessories
Sub-Bases
clean profile cylinder
- Operating temperature: from -20 to 80 °C2.
- Power source: filtered air, with or without oil2.
- Working pressure: from 1.5 to 10 bar2.
Pneumatic components
cylinder standard
- Vacuum: up to -0.67 bar
- Working fluid temperature: -10°C to +80°C
- Working fluid viscosity: up to 32 cSt
Push-in fittings for pneumatic circuits
Technopolymer Push-In Fittings
Nickel-plated Brass Push-in Fittings
Nickel-plated Brass Push-in Fittings
Nickel-plated Brass Push-in Fittings
heavy duty cylinder
- Mounting options: front, rear, side, flange, axle
- Rod type: single-acting, double-acting
- Piston type: single action, double action
- Seal material: NBR, FKM, PTFE, EPDM, PU
- Working fluid: air, oil
- External coating: anodizing, powder coating
Precision Regulators and Transducers

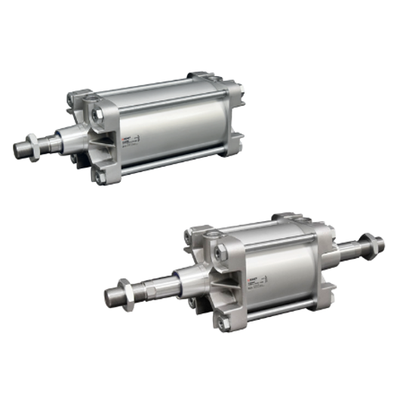

iso 15552 cylinder
- Body: aluminum
- Stem: stainless steel
- Seals: NBR, FKM, PU
- Other components: brass, steel
iso 21287 cylinder
- Piston material: Aluminum, steel
- Seals: NBR, FKM, EPDM
- Installation type: Wall mounted, on plate, on bracket
The J10A Short Slide Prot/Shaft from Univer Pneumatic is a part of their range of slide units for short-stroke cylinders. These units are designed to provide precise and stable linear motion, ensuring reliable performance in various industrial applications.
The J11A0, J11A2, and J11A3 Short Slide Prot/Shaft from Univer Pneumatic
The J11A4, J11A5, J11A6, and J11A8 Medium Slide Prot/Shaft KD from Univer Pneumatic
The J12A0 - J12A2 - J12A3 LONG SLIDE PROT/SHAFT series from Univer Pneumatic is designed to provide precise and reliable linear motion for various industrial applications. These units are particularly useful in guiding the stroke of pneumatic cylinders, ensuring smooth and accurate movement.
The J12A4 - J12A5 - J12A6 - J12A7 series from Univer Pneumatic is designed to enhance the performance and precision of KD series pneumatic cylinders. These long slide units are essential for applications requiring extended stroke lengths and high stability.
The J14A4, J14A5, J14A6, J14A7 series are part of the pneumatic cylinder line with guides.
The J16A0, J16A2, J16A3 CENTR.SLIDE SEMI-EXTER series from Univer Pneumatic is part of the pneumatic cylinder line with guides.
J16A4, J16A5, J16A6, J16A8 are lines of pneumatic cylinders with guides.
The J17A0, J17A2, J17A3 series are lines of pneumatic cylinders with guides.
The J17A4, J17A5, J17A6, J17A7 series are a line of pneumatic cylinders with guides.
Univer Group
Univer Group is one of the World's leading manufacturers of Pneumatic Cylinders equipment. Eltra Trade offers Univer original equipment featuring the widest variety of pneumatic cylinders. Our online store product range includes all types of pneumatic cylinders covering the majority of industries and application fields.
Pneumatic cylinder
What is a pneumatic cylinder? This is a pneumo-mechanical device that utilizes compressed gas power creating the physical force in a linear direction. This physical force produces a linear reciprocating or single-vector piston motion. A compressed gas force pushes the piston which provides the necessary motion for an industrial machine or mechanism.
Univer Air Cylinder Types
- Univer develops and manufactures several air cylinder types equipped with different functional features:
- Standards-based cylinders
- Standards-based compact cylinders
- Oval cylinders
- Short-stroke cylinders
- Rotating cylinders
- Rodless cylinders.
Each type is briefly covered in a short description down below.
Standards-based cylinders
Standard pneumatic cylinders are manufactured to generally accepted quality and reliability specs, which are well known throughout the industry. These devices are environmentally safe which ensures their active use in the pharmaceutical and food industries.
Standard-based compact cylinders
Standard-based compact cylinders are manufactured in compliance with the ISO 21287 Standard. Different compact series devices slightly vary in mounting dimensions. Univer offers cylinder diameters ranging from 33 to 100 mm.
Oval Cylinders
Univer oval cylinder models feature a more compact case design compared to a standard round cylinder case. This reduces the overall cylinders assembly dimensions when several coupled cylinders are used. Thus, it’s possible to achieve a more compact equipment arrangement in industrial sets. The oval piston profile prevents the rod rotation along the reference axis.
Short-stroke cylinders
Short-stroke cylinders are specially designed to be used in industrial sets and environments with limited mounting space. These devices have a unique shape which allows diminishing overall coupled cylinders assembly width dimensions.
Rotating cylinders
Rotating cylinders are used in lathe, turret, and intra grinding machines to drive cartridges and mandrels. They are placed and fixed at the rear end of the spindle. Univer supreme technology expertise and experience have provided these devices with higher levels of reliability and accuracy. The robust mechanical design expands the possibilities of application within the framework of modern automation.
Rodless cylinders
In rodless cylinders, the piston is equipped with a permanent magnet. This makes it possible to determine and track the carriage's operating position. This feature is provided and supported by magnetic piston sensors located in special pits on the cylinder’s walls. Rodless cylinders are equipped with adjusting cushioning and braking force features as well. These functions are activated at the end of each stroke.
For more info please see our Univer air cylinders catalog.
Eltra Trade offers the widest variety of Univer cylinders. We will be happy to provide you with the necessary assistance and supplemental materials helping to find the best Univer cylinder solution at a competitive price to perfectly fit your industry and application case. Contact us today!
