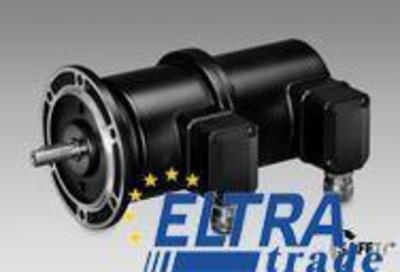

Baumer TDP 0,2 + OG 9

Tachogenerators and Resolvers
Baumer TDP 0,2 + OG 9
Price on Request
One click request
Linearity tolerance ≤0.15 %
Scan ratio 40...60 %
Rotor moment of inertia 1.4 kgcm²
Operating speed ≤10000 rpm
Reversal tolerance ≤0.1 %
Armature-circuit time-constant
Reference signal Zero pulse, width 90°
Operating temperature -30...+100 °C
-25...+100 °C (>3072 pulses per revolution)
Admitted shaft load ≤60 N axial
≤80 N radial
Materials Housing: aluminium die-cast
Shaft: stainless steel
Sensing method Optical
Size (flange) ø115 mm
Pulses per revolution 25...5000
Shaft type ø11 mm solid shaft
Temperature coefficient ±0.05 %/K (open-circuit)
Weight approx. 3.3 kg
Calibration tolerance ±1 %
Voltage supply 9...30 VDC
5 VDC ±5 %
9...26 VDC
Protection DIN EN 60529 IP 55
Phase shift 90° ±20°
Performance 12 W (speed ≥3000 rpm)
Approval CE
Open-circuit voltage 10...150 mV per rpm
Climatic test Humid heat, constant
(IEC 60068-2-3, Ca)
manufacter SKUTDP 0,2 + OG 9
Flange EURO flange B10
Emitted interference EN 61000-6-3
Torque 1.5 Ncm
TDP 0,2 + OG 9 output signals K1, K2, K0 + inverted
Connection 2x terminal box
Interference immunity EN 61000-6-2
Resistance IEC 60068-2-6
Vibration 10 g, 10-2000 Hz
IEC 60068-2-27
Shock 100 g, 6 ms
Output stages HTL-P (power linedriver)
TTL/RS422
Isolation class B
Consumption w/o load ≤100 mA
Output frequency ≤120 kHz
≤300 kHz (on request)
