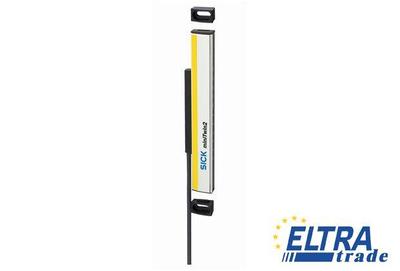

Sick C2MT-09634BBC03FB0

Safety light curtains
Sick C2MT-09634BBC03FB0

We are sorry, but Sick C2MT-09634BBC03FB0 is no longer available to order.


Part Number1207975
Power consumption:≤ 3 A
External device monitoring (delivery status):Deactivated
Switching current:300 mA
Enclosure rating:IP 65 (EN 60529)
Resolution:34 mm
Shock resistance:10 g, 16 ms (EN 60068-2-27)
Weight:340 g
External device monitoring (EDM):+
PFHd:Standalone system: 2.4  1E-08 (EN ISO 13849)
Configuration method:Hard wired
Cable length:700 mm
Integration via Flexi Soft safety controller:CANopenDeviceNetEtherCATEtherNet/IPModbus TCPPROFIBUS DPPROFINET
Connection type:Male connector M12, 5-pin
Performance level:PL c (EN ISO 13849), Pay attention to optical characteristics!
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60068-2-6)
Protective field height:960 mm
Category:Category 2 (EN ISO 13849)
Conductor cross-section:0.34 mm²
Display elements:LEDs
Safe state in the event of a fault:At least one OSSD is in the OFF state.
Automatic beam coding:+
Type:Type 2 (IEC 61496)
Ripple:≤ 10 %
Maximum demand rate:34 /min (EN ISO 13849)
Switching voltage HIGH:24 V DC (VS - 2.25 V DC ... VS)
Protection class:III (EN 61140)
Housing cross-section (incl. system connection):15 mm x 32 mm
Housing material:Aluminum alloy ALMGSI 0.5
Beam coding:+
Test rate (internal test):58 /s
Scanning range:0 m ... 6 m
Storage temperature:-25 °C ... +70 °C
Restart interlock:+
Air humidity:15 % ... 95 %, non-condensing
Safety integrity level:SIL1 (IEC 61508)
SILCL1 (EN 62061)
Type of output:PNP semiconductors, short-circuit protected, cross-circuit monitored
Permitted cable length:≤ 20 m
Response time:≤ 13 ms
Safe SICK device communication via EFI/SDL:-
Ambient operating temperature:-20 °C ... +55 °C
Typical range:0 m ... 8 m
TM (mission time):20 a (EN ISO 13849)
Supply voltage:24 V DC (19.2 V DC ... 28.8 V DC)
Synchronization:Optical, without separate synchronization
Restart interlock (delivery status):Deactivated
Switching voltage LOW:2 V DC
