DL100-23AA2109

Long range distance sensors

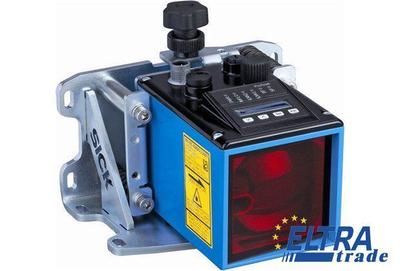

Sick DL100-23AA2109

We are sorry, but Sick DL100-23AA2109 is no longer available to order.

Specification:

Part Number1060390
Output current IA :≤ 100 mA
Light source :Laser, red
Ripple :5 Vpp
Housing material:Aluminum/zinc die-cast
Initialization time :Typ. 1.5 s
Acceleration (max.):15 m/s²
Data interface:CANopen
Repeatability :2 mm
Modulation frequency:Fix
Effect of air pressure:0.3 ppm/hPa
Typ. light spot size (distance):5 mm (+ 2 mm x distance in m)
Multifunctional input (MF) :1 x MF1
Laser class:2 (EN 60825-1 / CDRH)
Mechanical load:Noise: EN 600 68-2-64
Shock: EN 600 68-2-27
Sine: EN 600 68-2-6
Protection class:III
Enclosure rating:IP 65
Connection type:Male connector, M12, SPEEDCON™ compatible
Indication:6 digit 5 x 7 dot matrix display, LEDs
Effect of air temperature:1 ppm/K
Accuracy :± 3 mm
Measuring range:0.15 m ... 300 m, On reflective tape "Diamond Grade"
Switching output :B (push/pull)
MF1, MF2
Power consumption:At 24 V DC < 250 mA
Electromagnetic compatibility (EMC) :EN 61000-6-2 / EN 61000-6-4
Temperature drift:Typ. 0.1 mm/K
Dead time:2 ms
Max. movement speed:30 m/s
Supply voltage Vs:DC 18 V ... 30 V, limit values
Ambient temperature :Operation: -20 ... +55 °C
Operation with cooling case: -20 ... +75 °C
Storage: -40 ... +75 °C
Resolution:0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm
Weight :Ca. 800 g ... 1,600 g
Internal measurement cycle:1 ms
Output time:Synchronous to PLC request (dependent on interfaces)
