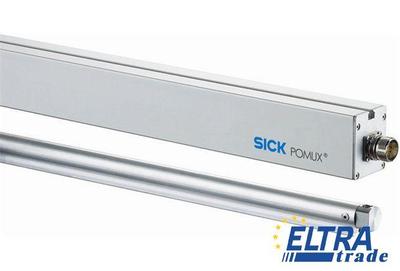

Sick KHK53-AXU00354

Linear encoders
Sick KHK53-AXU00354
3537.55
One click request

Specification:

Part Number1030071
Material:AlMgSiPbF28
Resistance to shocks:30 g, 10 ms (DIN EN 60 068-2-27)
Interface signals:Digital, serial
Connection type:Cable, 10 m
Working temperature range:-20 °C ... +60 °C
Enclosure rating:IP 66 (IEC 60529)
Resistance to vibration:10 g, 20 Hz ... 250 Hz (EN 60068-2-6)
EMC:(according to EN 61000-6-2 and EN 61000-6-4)
Initialization time:2 s
Power consumption:250 mA
Supply voltage:10 V ... 32 V
Interface for parametrization:Data format: 1 start bit, 8 data bits, 1 stop bit, no parity, Data protocol: ASCII, Baud rate 9600 RS-422, RS-422, Four wire transmission, asynchrony, full duplex
Storage temperature range:-40 °C ... +85 °C
Position tolerance:± 10 mm
Piston speed:6.6 m/s
Measuring range:354 m
Resolution:0.1 mm
Data format:SSI 24 bits format
Measuring length:0 m ... 354 m
MTTFd: mean time to dangerous failure:31 a (EN ISO 13849)
Position forming time:0.8 ms
Mass:3.6 kg
Electrical interface:SSI
Repeat accuracy:0.3 mm
Standard (default setting SSI standard):RS-422 off
Measurement accuracy:± 1000 + ME (Tu-25° C) Tk µm
